Analog Devices Inc. AD7890BNZ-10
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 98.25 | Dhs. 98.25 |
| 15+ | Dhs. 95.15 | Dhs. 1,427.25 |
| 25+ | Dhs. 93.08 | Dhs. 2,327.00 |
| 50+ | Dhs. 87.91 | Dhs. 4,395.50 |
| 100+ | Dhs. 77.57 | Dhs. 7,757.00 |
| N+ | Dhs. 15.51 | Price Inquiry |
Request Quote / Inquiry

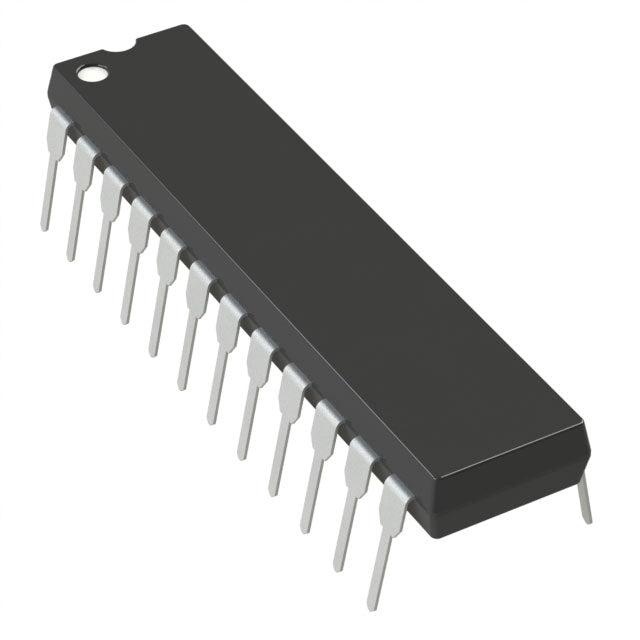

AD7890BNZ-10 Data Acquisition System IC
The AD7890BNZ-10 from Analog Devices is a high-performance 8-channel, 12-bit data acquisition system (DAS) designed for precision analog-to-digital conversion in industrial, automotive, and embedded applications. With a 117kSPS sampling rate and serial data interface, this IC delivers reliable performance across a wide operating temperature range of -40°C to 85°C.
Key Features
- 8-channel multiplexed input for versatile signal acquisition
- 12-bit resolution for accurate data conversion
- 117kSPS sampling rate for real-time applications
- Serial interface for easy microcontroller integration
- Single 5V supply operation simplifies power design
- Through-hole 24-DIP package for robust PCB mounting
- Extended industrial temperature range: -40°C to 85°C
Applications
Ideal for industrial process control, medical instrumentation, automotive sensor interfaces, test and measurement equipment, and multi-channel data logging systems requiring high reliability and long product lifecycle.
Quality Assurance: All components are sourced from authorized channels with full traceability, RoHS/REACH compliance, and manufacturer documentation support. Long lifecycle commitment ensures availability for critical design-in applications.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 117k |
| Data Interface | Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP |
AD7890BNZ-10.pdf
