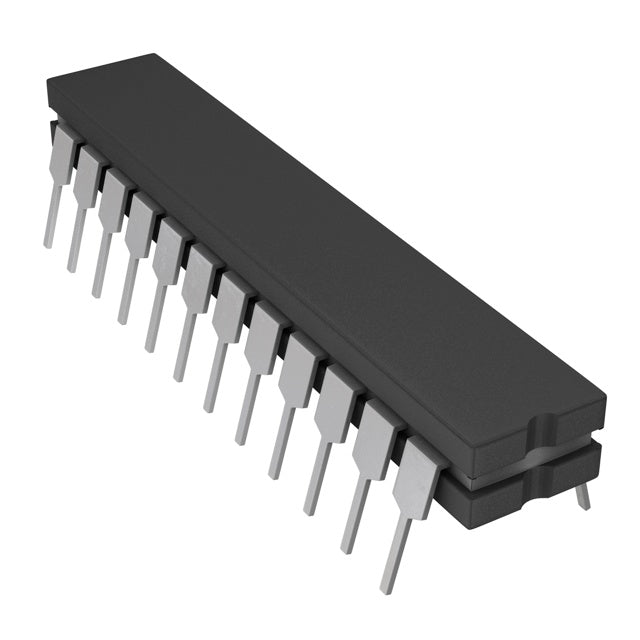

Analog Devices Inc. AD7890SQ-10
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 532.28 | Dhs. 532.28 |
| 15+ | Dhs. 515.49 | Dhs. 7,732.35 |
| 25+ | Dhs. 504.28 | Dhs. 12,607.00 |
| 50+ | Dhs. 476.26 | Dhs. 23,813.00 |
| 100+ | Dhs. 420.23 | Dhs. 42,023.00 |
| N+ | Dhs. 84.05 | Price Inquiry |
Request Quote / Inquiry
AD7890SQ-10 - High-Performance 12-Bit Data Acquisition System
The AD7890SQ-10 from Analog Devices is a precision 8-channel data acquisition system (DAS) featuring 12-bit resolution and an impressive 117kSPS sampling rate. Designed for demanding aerospace, automotive, industrial, and medical applications, this DAS delivers reliable performance across an extended temperature range of -55°C to 125°C.
Key Features & Benefits
- 8-Channel Multiplexed Input: Monitor multiple signals simultaneously with integrated channel selection
- 12-Bit Resolution: Achieve precise measurements with 4096 discrete levels
- 117kSPS Sampling Rate: Capture fast-changing signals with confidence
- Serial Data Interface: Simplify board layout and reduce pin count
- Single 5V Supply: Minimize power supply complexity and cost
- Military Temperature Range: Proven reliability from -55°C to 125°C
- Through-Hole 24-CDIP Package: Robust mounting for high-reliability applications
- RoHS Compliant: Meets environmental standards for global distribution
Typical Applications
- Aerospace instrumentation and avionics systems
- Automotive sensor monitoring and diagnostics
- Industrial process control and automation
- Medical diagnostic equipment
- Telecommunications infrastructure
- Test and measurement equipment
Why Choose AD7890SQ-10?
As an authorized distributor, we provide genuine Analog Devices components with full traceability, comprehensive datasheets, and technical support. Every unit is backed by our commitment to quality and compliance, ensuring your design meets the highest standards for reliability and performance.
Need design-in support? Our engineering team is ready to assist with reference designs, application notes, and technical guidance to accelerate your project timeline.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 117k |
| Data Interface | Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP |
| ROHS |  |
AD7890SQ-10.pdf
