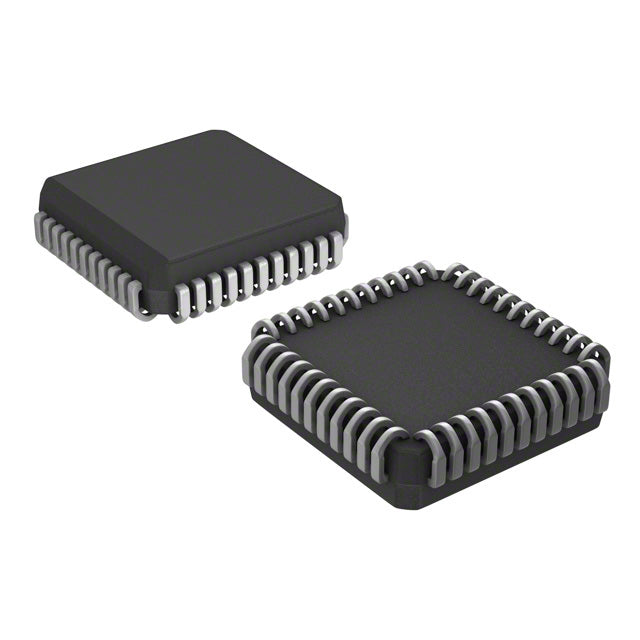

Analog Devices Inc. AD7891AP-2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 110.92 | Dhs. 110.92 |
| 15+ | Dhs. 107.42 | Dhs. 1,611.30 |
| 25+ | Dhs. 105.08 | Dhs. 2,627.00 |
| 50+ | Dhs. 99.25 | Dhs. 4,962.50 |
| 100+ | Dhs. 87.57 | Dhs. 8,757.00 |
| N+ | Dhs. 17.51 | Price Inquiry |
Request Quote / Inquiry
AD7891AP-2 Data Acquisition System Overview
The AD7891AP-2 from Analog Devices is a high-performance 12-bit, 8-channel data acquisition system (DAS) designed for precision analog-to-digital conversion in industrial, automotive, and embedded applications. With a 500kSPS sampling rate and flexible serial/parallel data interfaces, this DAS delivers reliable performance across a wide temperature range from -40°C to 85°C.
Key Features & Benefits
- 12-bit resolution ensures accurate signal conversion for demanding applications
- 8 input channels enable multi-signal monitoring in a single device
- 500kSPS sampling rate supports high-speed data acquisition requirements
- Dual interface options (serial and parallel) provide design flexibility
- Single 5V supply simplifies power design and reduces system complexity
- Extended temperature range (-40°C to 85°C) for harsh environment reliability
- Surface mount 44-PLCC package optimized for automated assembly
Typical Applications
The AD7891AP-2 is ideal for industrial process control, automotive sensor interfaces, medical instrumentation, test and measurement equipment, and multi-channel data logging systems where precision, speed, and reliability are critical.
All specifications are subject to manufacturer's datasheet. For detailed electrical characteristics, timing diagrams, and application notes, please refer to the official Analog Devices documentation.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 500k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
AD7891AP-2.pdf
