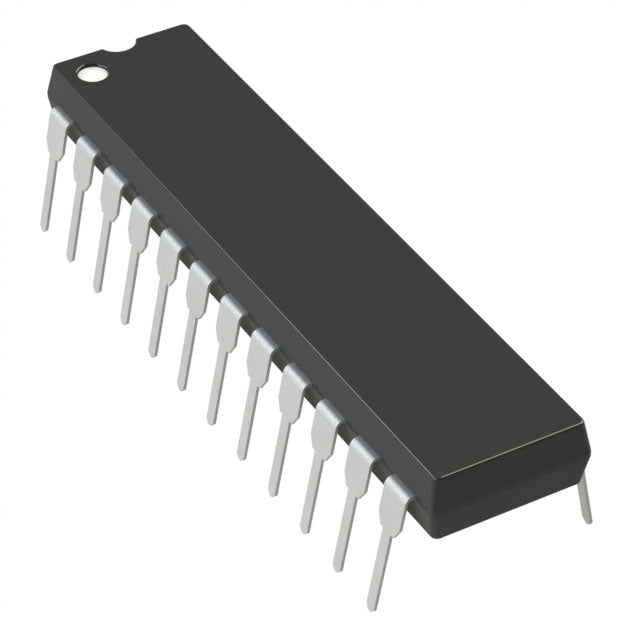

Analog Devices Inc. AD7892ANZ-3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $178.55 | $178.55 |
| 15+ | $41.07 | $616.05 |
| 25+ | $40.18 | $1,004.50 |
| 50+ | $37.94 | $1,897.00 |
| 100+ | $33.48 | $3,348.00 |
| N+ | $6.70 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 600k |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | SPI, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP |
| ROHS |  |
The AD7892ANZ-3 is a 12-bit, 600 kSPS dual-channel ADC from Analog Devices, featuring a sample-and-hold architecture. It offers both SPI and parallel interfaces, providing design flexibility for various digital systems. With an industrial temperature range and a 24-DIP package, this ADC is ideal for industrial control, motor drives, and medical instrumentation.
- Dual-Channel Simultaneous Sampling: Captures two signals at once, ideal for phase-current and voltage monitoring in motor control.
- Flexible Interface Options: Supports both SPI and parallel, allowing easy integration with microcontrollers and DSPs.
- High 600 kSPS Sampling Rate: Enables accurate digitization of fast-changing signals for real-time control.
- Industrial Temperature Range: Rated from -40°C to 85°C, ensuring reliable operation in harsh environments.
Industrial Data Acquisition
The AD7892ANZ-3's 600 kSPS sampling rate and 12-bit resolution make it ideal for industrial data acquisition systems, enabling accurate digitization of fast-changing sensor signals.
Motor Control
In motor drives, the ADC's dual channels can sample phase currents and voltages simultaneously, enabling precise field-oriented control for improved efficiency and torque.
Power Monitoring
For power quality analyzers, the ADC digitizes voltage and current waveforms with high accuracy, supporting harmonic analysis and power factor measurement.
Medical Devices
In patient monitoring equipment, the 12-bit resolution and dual channels allow simultaneous ECG and respiration measurement, enhancing diagnostic capabilities.
Automotive Sensors
The industrial temperature range and dual-channel capability make it suitable for automotive sensor interfaces, such as battery monitoring and motor control in EVs.
Portable Instruments
With its SPI interface and low power consumption, this ADC is well-suited for battery-powered handheld instruments requiring high-speed measurement.
- Q: What is the AD7892ANZ-3?
- A: It is a 12-bit, 600 kSPS analog-to-digital converter (ADC) with 2 channels and a sample-and-hold (S/H) architecture.
- Q: What is the resolution?
- A: It offers 12-bit resolution, providing good accuracy for a wide range of applications.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 600 kSPS, suitable for moderate-speed data acquisition.
- Q: How many channels does it have?
- A: It features 2 input channels, allowing simultaneous sampling of two signals.
- Q: What interfaces are supported?
- A: It supports both SPI and parallel interfaces, offering flexibility in system design.
- Q: What is the temperature range?
- A: It operates from -40°C to 85°C, suitable for industrial applications.
