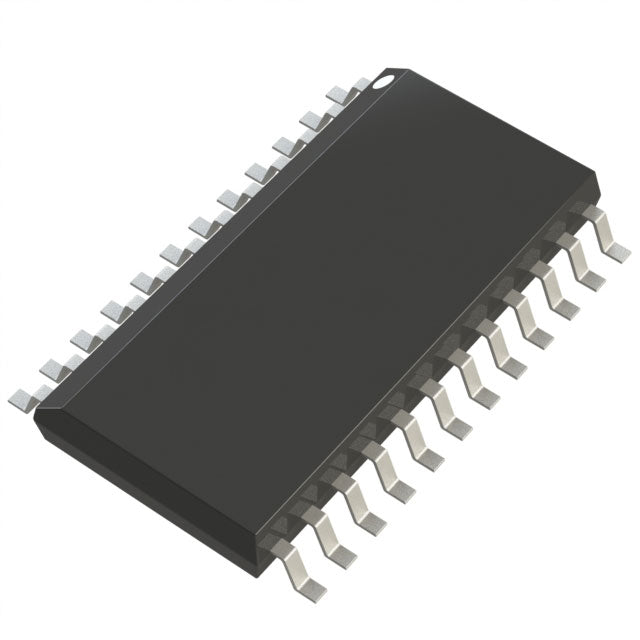

Analog Devices Inc. AD7892ARZ-1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $46.38 | $46.38 |
| 15+ | $44.91 | $673.65 |
| 25+ | $43.94 | $1,098.50 |
| 50+ | $41.50 | $2,075.00 |
| 100+ | $36.62 | $3,662.00 |
| N+ | $7.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | SPI, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The AD7892ARZ-1 is a versatile 12-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 500k SPS. This dual-channel device features a S/H-ADC architecture and supports both SPI and Parallel interfaces, providing flexibility for various system designs. It supports external and internal voltage references and operates over the industrial temperature range of -40°C to +85°C. Packaged in a 24-SOIC, it is well-suited for industrial automation, medical monitoring, and portable instrumentation.
- Dual Channel Input: Two input channels allow simultaneous monitoring of multiple signals, reducing system complexity.
- Flexible Interfaces: Both SPI and Parallel interfaces provide compatibility with a wide range of microcontrollers and DSPs.
- Good Resolution: 12-bit resolution offers sufficient accuracy for most industrial and medical applications.
- Wide Temperature Range: -40°C to +85°C operation ensures reliability in demanding environments.
Multi-Channel Data Acquisition
The AD7892ARZ-1 features 2 input channels, making it ideal for data acquisition systems that need to monitor multiple sensors simultaneously, such as in industrial process monitoring.
Industrial Automation Control
With its dual interface options (SPI and Parallel), this ADC can easily connect to various microcontrollers and PLCs, enabling precise control of motors and actuators in automated factories.
Medical Patient Monitoring
The 12-bit resolution and 500k SPS sampling rate are suitable for digitizing vital signs like ECG and blood pressure, providing accurate data for patient monitoring systems.
Portable Instrumentation
The 24-SOIC package and low power consumption make it suitable for handheld multimeters and portable data loggers requiring reliable analog-to-digital conversion.
Automotive Sensor Conditioning
In automotive test systems, the AD7892ARZ-1 can digitize signals from temperature, pressure, and position sensors with high accuracy for engine control and diagnostics.
Energy Management Systems
For power monitoring, this ADC can measure voltage and current from multiple phases, enabling efficient energy management in smart grid applications.
