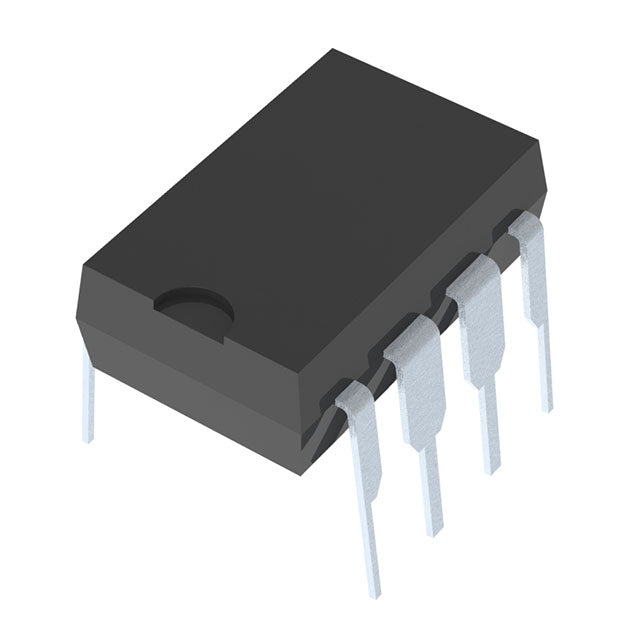

Analog Devices Inc. AD7893ANZ-5
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $130.75 | $130.75 |
| 15+ | $30.07 | $451.05 |
| 25+ | $29.42 | $735.50 |
| 50+ | $27.79 | $1,389.50 |
| 100+ | $24.52 | $2,452.00 |
| N+ | $4.90 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 117k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
The AD7893ANZ-5 is a fast, 12-bit analog-to-digital converter from Analog Devices, designed for applications requiring high-speed data conversion. It features a successive approximation architecture with a sample-and-hold amplifier, achieving a sampling rate of 117k SPS. The device communicates via an SPI-compatible interface and requires an external voltage reference for operation. Housed in a robust 8-pin DIP package, it operates over the industrial temperature range of -40°C to +85°C. This ADC is well-suited for data acquisition, medical instrumentation, and industrial automation systems.
- High-Speed Performance: The 117k SPS sampling rate allows for accurate conversion of fast-changing analog signals.
- Flexible Reference: The external reference input provides flexibility to match the ADC's input range to the specific sensor or signal.
- Easy Integration: The SPI interface simplifies connection to microcontrollers, DSPs, and FPGAs.
- Compact Package: The 8-pin DIP package is easy to handle and suitable for prototyping and through-hole PCBs.
High-Speed Data Acquisition
The AD7893ANZ-5's 117k SPS sampling rate makes it suitable for high-speed data acquisition systems in test and measurement equipment, where fast and accurate signal capture is essential.
Medical Instrumentation
In medical devices like patient monitors, this ADC's 12-bit precision and SPI interface enable reliable digitization of biosignals such as ECG and EEG.
Industrial Automation
For industrial automation, the AD7893ANZ-5 can convert analog signals from sensors in robotic control systems, ensuring precise positioning and operation.
Communication Systems
Its fast sampling rate and serial interface make it useful in communication systems for digitizing baseband signals in modems and radio receivers.
Precision Measurement Tools
The external reference allows designers to set a custom voltage range, making this ADC ideal for precision measurement tools like digital multimeters and calibrators.
- Q: What is the AD7893ANZ-5?
- A: It is a 12-bit, single-channel, successive approximation ADC with a sample-and-hold function, requiring an external reference.
- Q: What is the sampling rate of the AD7893ANZ-5?
- A: The AD7893ANZ-5 achieves a maximum sampling rate of 117k SPS.
- Q: What interface does this ADC use?
- A: It uses an SPI-compatible serial interface for data output and control.
- Q: What is the resolution of this converter?
- A: It provides 12-bit resolution, offering 4096 distinct digital output codes.
- Q: What package is the AD7893ANZ-5 available in?
- A: It is available in an 8-pin DIP package (0.300" width), suitable for through-hole mounting.
- Q: What is the operating temperature range?
- A: The device is specified for operation from -40°C to +85°C.
