Regular price $14.23
Regular price $14.98 Sale price $14.23
Sale Sold out
Quantity Unit Price Total Price
1 $14.23 $14.23
15+ $13.78 $206.70
25+ $13.48 $337.00
50+ $12.73 $636.50
100+ $11.24 $1,124.00
N+ $2.25 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Analog Devices Inc.
Product Series
Packaging Tube |
Number of Bits 12
Sampling Rate (Per Second) 188k
Number of Inputs 4
Input Type Single Ended
Data Interface I2C
Configuration MUX-S/H-ADC
Ratio - S/H:ADC 1:1
Number of A/D Converters 1
Architecture SAR
Reference Type External
Voltage - Supply, Analog 2.7V ~ 5.5V
Voltage - Supply, Digital 2.7V ~ 5.5V
Features -
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Grade -
Qualification -
Package / Case 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 16-TSSOP
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

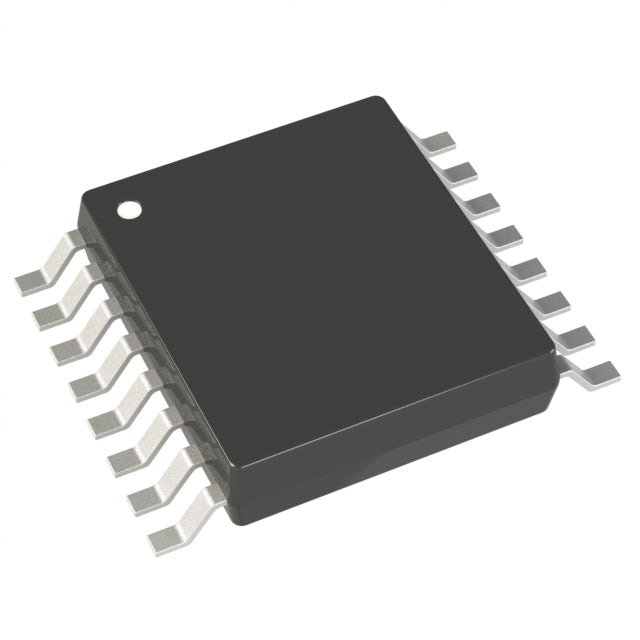

The AD7994BRUZ-1 is a 12-bit analog-to-digital converter from Analog Devices, featuring a 188 kSPS sampling rate and 4 input channels. It utilizes a multiplexed sample-and-hold architecture and communicates via an I2C interface, making it easy to integrate into digital systems. The device operates with an external reference and supports a temperature range of -40°C to 125°C. Housed in a 16-TSSOP package, the AD7994BRUZ-1 is ideal for system monitoring, battery management, and industrial sensor applications.

  • Simple I2C Interface: The I2C interface reduces pin count and simplifies PCB layout, allowing easy connection to microcontrollers.
  • Multi-Channel Input: 4 input channels enable monitoring of multiple signals with a single ADC, reducing component count.
  • Wide Temperature Range: -40°C to 125°C operation supports use in demanding industrial and automotive environments.
  • Compact Package: The 16-TSSOP package is space-efficient for portable and embedded applications.

System Monitoring and Control

The AD7994BRUZ-1, with its 12-bit resolution and 188 kSPS sampling rate, is ideal for system monitoring applications. The I2C interface allows easy integration with microcontrollers for voltage, temperature, and current monitoring.

Battery Management Systems

In battery-powered devices, the AD7994BRUZ-1 can monitor battery voltage and current. The 4-channel input allows simultaneous monitoring of multiple battery cells or parameters.

Industrial Sensor Interfaces

The AD7994BRUZ-1 can interface with industrial sensors such as temperature and pressure transducers. Its wide operating temperature range of -40°C to 125°C ensures reliable operation in harsh environments.

Portable Medical Devices

For portable medical equipment, the AD7994BRUZ-1 provides accurate conversion with low power consumption. The compact 16-TSSOP package is suitable for handheld devices.

Environmental Monitoring

The AD7994BRUZ-1 can be used in environmental monitoring systems to digitize signals from various sensors. The I2C interface simplifies multi-device communication on a single bus.

Automotive Electronics

With its wide temperature range, the AD7994BRUZ-1 is suitable for automotive applications such as battery monitoring and sensor conditioning.

Q: What type of ADC is the AD7994BRUZ-1?
A: The AD7994BRUZ-1 is a 12-bit analog-to-digital converter with a MUX-S/H-ADC architecture.
Q: What is the resolution of the AD7994BRUZ-1?
A: The AD7994BRUZ-1 has a resolution of 12 bits.
Q: What is the sampling rate of the AD7994BRUZ-1?
A: The AD7994BRUZ-1 has a sampling rate of 188 kSPS.
Q: How many channels does the AD7994BRUZ-1 have?
A: The AD7994BRUZ-1 has 4 input channels.
Q: What interface does the AD7994BRUZ-1 use?
A: The AD7994BRUZ-1 uses an I2C interface.
Q: What is the package type of the AD7994BRUZ-1?
A: The AD7994BRUZ-1 is available in a 16-TSSOP package.
Base Product Number : AD7994
12-bit 16-TSSOP 188 kSPS 4-channel ADC Analog Devices Analog-to-Digital Converter I2C MUX-S/H-ADC
