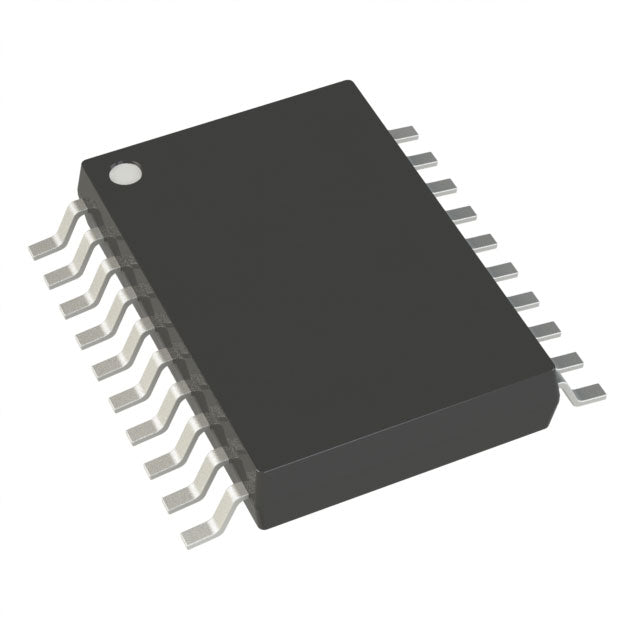

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $14.23
Regular price $14.98 Sale price $14.23
Sale Sold out
Quantity Unit Price Total Price
1 $14.23 $14.23
15+ $13.78 $206.70
25+ $13.48 $337.00
50+ $12.73 $636.50
100+ $11.24 $1,124.00
N+ $2.25 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Analog Devices Inc.
Product Series
Packaging Tube |
Number of Bits 12
Sampling Rate (Per Second) 188k
Number of Inputs 8
Input Type Single Ended
Data Interface I2C
Configuration MUX-S/H-ADC
Ratio - S/H:ADC 1:1
Number of A/D Converters 1
Architecture SAR
Reference Type External
Voltage - Supply, Analog 2.7V ~ 5.5V
Voltage - Supply, Digital 2.7V ~ 5.5V
Features -
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Grade -
Qualification -
Package / Case 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 20-TSSOP
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The AD7998BRUZ-0 is a 12-bit, 8-channel analog-to-digital converter (ADC) from Analog Devices. It features a maximum sampling rate of 188k SPS and uses an I2C interface for easy integration. With a MUX-S/H-ADC architecture and external reference, it provides accurate conversion for multi-channel applications. Its compact 20-TSSOP package and wide operating temperature range make it suitable for industrial, automotive, and portable instrumentation.

  • 8-Channel Input: Allows monitoring of multiple analog signals with a single device, reducing component count.
  • High-Speed Sampling: 188k SPS sampling rate enables capture of fast-changing signals.
  • Simple I2C Interface: Easy to connect to microcontrollers with minimal wiring.
  • Compact Package: 20-TSSOP package saves board space in dense designs.
  • Wide Temperature Range: Operates from -40°C to 85°C for industrial applications.

Multi-Channel Data Acquisition

With 8 input channels and a 188k SPS sampling rate, this ADC is perfect for multi-channel data acquisition systems that require simultaneous monitoring of several analog signals.

Portable Instrumentation

The I2C interface and small 20-TSSOP package make it ideal for space-constrained portable instruments, such as handheld multimeters and environmental monitors.

Industrial Sensor Monitoring

It can digitize outputs from multiple industrial sensors, including temperature and pressure transducers, with 12-bit accuracy over a -40°C to 85°C range.

Battery Management Systems

The low power consumption and 8-channel capability allow for efficient monitoring of individual cell voltages in battery management systems.

Communication Systems

Its high sampling rate supports digitization of communication signals for base station monitoring and control applications.

Automotive Electronics

Suitable for automotive sensor interfaces, providing reliable conversion of analog signals in engine control and infotainment systems.

Q: What type of ADC is the AD7998BRUZ-0?
A: It is a 12-bit, 8-channel analog-to-digital converter (ADC) with a MUX-S/H-ADC architecture.
Q: What is the resolution of this ADC?
A: The AD7998BRUZ-0 has a 12-bit resolution.
Q: What is the maximum sampling rate?
A: The maximum sampling rate is 188k SPS.
Q: How many input channels does it support?
A: It supports 8 single-ended input channels.
Q: What digital interface is available?
A: It uses an I2C interface for communication.
Q: What is the operating temperature range?
A: It operates over -40°C to 85°C and is available in a 20-TSSOP package.
Base Product Number : AD7998BRUZ-0
12-bit 188k SPS 20-TSSOP 8-channel ADC Analog Devices Analog-to-Digital Converter I2C MUX-S/H
