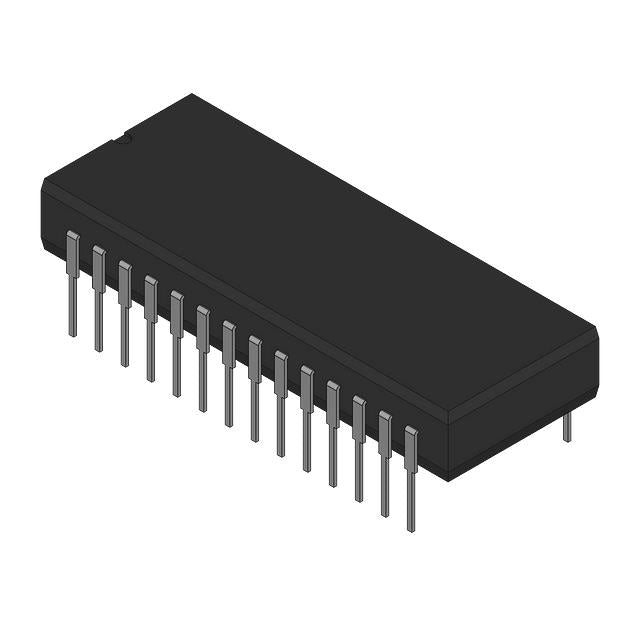

Analog Devices Inc. AD9012SQ/883B
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $442.09 | $442.09 |
| 15+ | $428.13 | $6,421.95 |
| 25+ | $418.82 | $10,470.50 |
| 50+ | $395.56 | $19,778.00 |
| 100+ | $349.02 | $34,902.00 |
| N+ | $69.80 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD9012 |
| Packaging | Bulk | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 100M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | - |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | - |
| Reference Type | External |
| Voltage - Supply, Analog | ±4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
The AD9012SQ/883B is a high-speed 8-bit analog-to-digital converter from Analog Devices, designed for applications requiring fast signal digitization. It offers a sampling rate of 100 MSPS and a single input channel. The device uses an external reference and features a Sample-and-Hold architecture for accurate sampling. Housed in a 28-CDIP package, it operates over the military temperature range of -55°C to 125°C, making it suitable for demanding high-speed applications.
- Ultra-High Speed: 100 MSPS sampling rate enables digitization of very fast signals.
- Military Temperature Range: Operates from -55°C to 125°C for harsh environments.
- External Reference: Allows for precise reference voltage control for optimized performance.
- Robust CDIP Package: Provides reliable operation in demanding applications.
High-Speed Digital Oscilloscopes
The 100 MSPS sampling rate of the AD9012SQ/883B makes it ideal for digital oscilloscopes, enabling the capture of high-frequency signals with good time resolution.
Radar and Electronic Warfare
In radar systems, this ADC can digitize IF signals at high speed, supporting target detection and electronic countermeasures.
High-Energy Physics Experiments
For particle detectors and high-energy physics experiments, the high sampling rate allows for precise timing and amplitude measurement of fast pulses.
Broadband Communication Systems
This ADC is suitable for broadband communication receivers, where high-speed digitization is required for software-defined radio and cognitive radio applications.
Medical Ultrasound Imaging
In ultrasound systems, the high sampling rate enables the capture of high-frequency echo signals, improving image resolution and diagnostic capability.
Automotive Radar and ADAS
For automotive radar and advanced driver-assistance systems (ADAS), this ADC provides the speed needed for real-time object detection and collision avoidance.
- Q: What is the resolution of the AD9012SQ/883B?
- A: It is an 8-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 100 MSPS (Mega Samples Per Second).
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What is the architecture?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What reference is used?
- A: It uses an external reference.
- Q: What is the package type?
- A: It comes in a 28-CDIP package.
