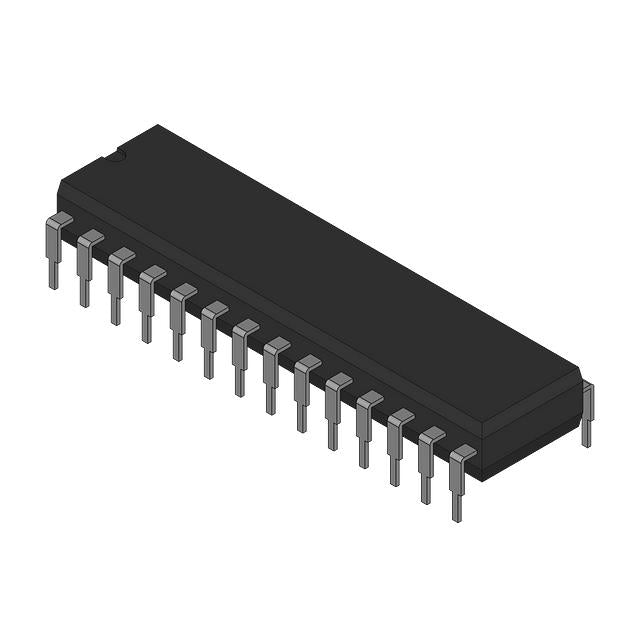

Analog Devices Inc. AD9012TQ/883B
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $498.13 | $498.13 |
| 15+ | $482.40 | $7,236.00 |
| 25+ | $471.92 | $11,798.00 |
| 50+ | $445.70 | $22,285.00 |
| 100+ | $393.26 | $39,326.00 |
| N+ | $78.65 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD9012 |
| Packaging | Bulk | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 100M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | - |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | - |
| Reference Type | External |
| Voltage - Supply, Analog | ±4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
The AD9012TQ/883B is an 8-bit, 100 MSPS analog-to-digital converter from Analog Devices. It features a sample-and-hold architecture and a single input channel, ensuring accurate conversion of high-speed signals. The device requires an external reference and provides data via a parallel interface. Housed in a 28-pin ceramic CDIP package, it is designed to operate over the full military temperature range of -55°C to 125°C, making it a reliable choice for high-reliability military and aerospace applications.
- Integrated Sample-and-Hold: The S/H architecture ensures stable and accurate conversion of fast-moving analog signals, reducing system design complexity.
- High-Speed Performance: With a 100 MSPS sampling rate, it is well-suited for high-frequency signal processing and data acquisition.
- Extended Temperature Range: Guaranteed operation from -55°C to 125°C makes it suitable for mission-critical applications in extreme environments.
- Robust Ceramic Package: The hermetic 28-CDIP package provides excellent protection against moisture and mechanical stress.
High-Performance Data Acquisition
The 100 MSPS sampling rate combined with an internal sample-and-hold circuit ensures accurate digitization of high-frequency signals in professional data acquisition systems.
Aerospace Test Equipment
Designed for the -55°C to 125°C temperature range, this ADC is suitable for aerospace test and measurement equipment that must operate reliably in harsh environments.
Digital Oscilloscopes
The S/H architecture and 8-bit resolution make it a good fit for digitizing front-end signals in portable and bench-top digital storage oscilloscopes.
Communication Receivers
In IF sampling receivers, the AD9012TQ/883B's high speed and parallel output facilitate direct digitization of intermediate frequency signals for software-defined radio.
Medical Monitoring Devices
For high-speed medical sensors, this ADC provides the necessary conversion rate to capture fast biological signals with adequate precision.
- Q: What is the resolution of the AD9012TQ/883B?
- A: This ADC provides 8-bit resolution.
- Q: What is the sampling rate of the AD9012TQ/883B?
- A: It operates at a sampling rate of 100 MSPS (100M samples per second).
- Q: How many channels does this device have?
- A: It has a single (1) input channel.
- Q: What architecture does the AD9012TQ/883B use?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What is the operating temperature range?
- A: It is rated for operation from -55°C to 125°C.
- Q: What package is available?
- A: It is offered in a 28-pin CDIP (0.600", 15.24mm) package.
