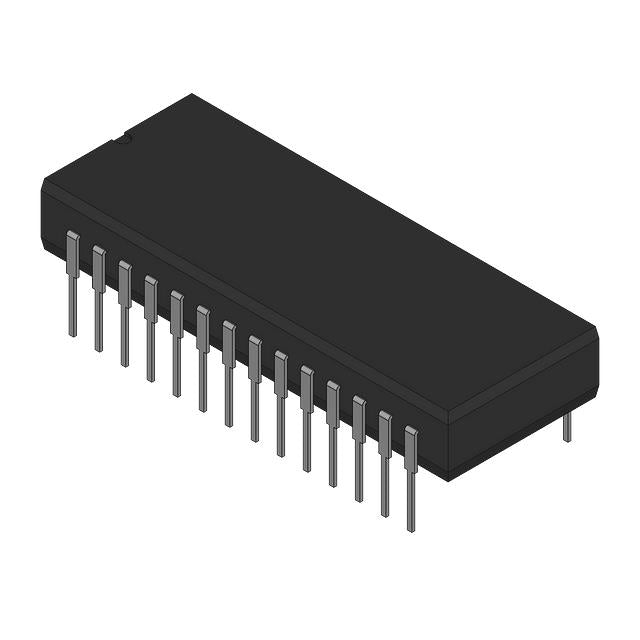

Analog Devices Inc. AD9023AZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $476.64 | $476.64 |
| 15+ | $109.63 | $1,644.45 |
| 25+ | $107.24 | $2,681.00 |
| 50+ | $101.29 | $5,064.50 |
| 100+ | $89.37 | $8,937.00 |
| N+ | $17.87 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD9023 |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 20M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 2:3 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | Internal |
| Voltage - Supply, Analog | -5.45V ~ -4.95V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -5.45V ~ -4.95V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
The Analog Devices AD9023AZ is a 12-bit, single-channel Analog-to-Digital Converter (ADC) with a sampling rate of 20 MSPS. It features a parallel interface for straightforward connection to digital systems. The device is housed in a rugged 28-CDIP package, ensuring durability in harsh environments. It is well-suited for military, industrial, and communication applications where reliability and performance are critical.
- Rugged Package: The 28-CDIP package offers superior mechanical and thermal stability.
- Fast Conversion: 20 MSPS sampling rate supports real-time signal processing.
- Simple Interface: Parallel output simplifies connection to microprocessors and DSPs.
- Wide Temperature Range: Operates from -25°C to 85°C, suitable for demanding environments.
Military and Aerospace
The AD9023AZ's robust CDIP package and wide temperature range make it suitable for military radar and avionics systems.
Industrial Control Systems
With 12-bit resolution and 20 MSPS, it can digitize control loop feedback signals in high-speed industrial automation.
Communication Systems
In IF sampling applications, the parallel interface allows direct connection to DSPs for demodulation.
Test Equipment
For benchtop instruments, the AD9023AZ provides reliable performance for signal analysis.
Medical Electronics
In imaging devices, the ADC's speed supports real-time data processing.
- Q: What is the resolution of the AD9023AZ?
- A: The AD9023AZ is a 12-bit Analog-to-Digital Converter (ADC).
- Q: What is the sampling rate?
- A: It has a sampling rate of 20 MSPS (Mega Samples Per Second).
- Q: How many channels does it have?
- A: It is a single-channel (1 channel) ADC.
- Q: What interface does the AD9023AZ use?
- A: It uses a Parallel interface for data output.
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It is available in a 28-CDIP (0.600", 15.24mm) package.
