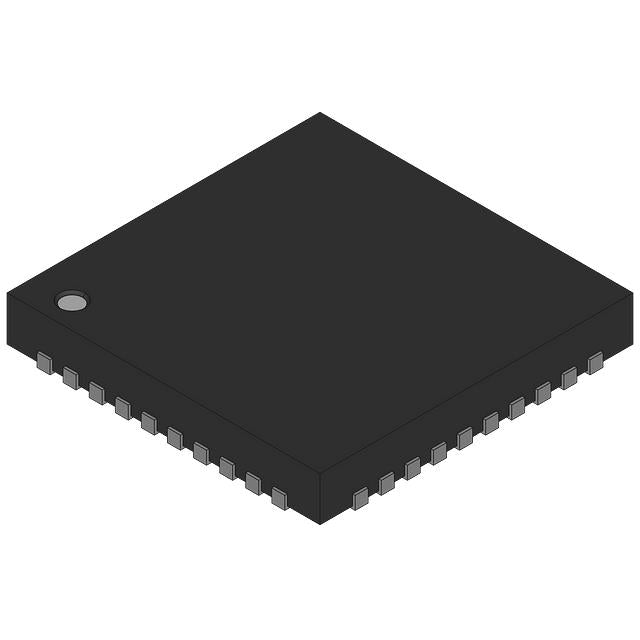

Analog Devices Inc. AD9032AZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $782.18 | $782.18 |
| 15+ | $757.48 | $11,362.20 |
| 25+ | $741.02 | $18,525.50 |
| 50+ | $699.85 | $34,992.50 |
| 100+ | $617.51 | $61,751.00 |
| N+ | $123.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD9032 |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 25.6M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | - |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | Internal |
| Voltage - Supply, Analog | -4.94V ~ -5.45V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -4.94V ~ -5.45V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 40-CFlatPack |
| Supplier Device Package | 40-CFlatPack |
| ROHS |  |
The AD9032AZ from Analog Devices is a high-speed 12-bit analog-to-digital converter with a sampling rate of 25.6 MSPS. Its S/H-ADC architecture ensures accurate capture of fast-moving analog signals, making it ideal for imaging, communications, and radar systems. The device is housed in a 40-pin ceramic flat pack and operates over an industrial temperature range of -25°C to 85°C. With its combination of speed and resolution, the AD9032AZ delivers excellent performance for demanding data conversion applications.
- High-Speed Conversion: 25.6 MSPS enables digitization of fast signals for real-time processing.
- 12-Bit Resolution: Provides high dynamic range for capturing subtle signal details.
- Sample-and-Hold Architecture: Ensures accurate sampling of high-frequency inputs without aliasing errors.
- Ceramic Flat Pack: Offers a low-profile, hermetically sealed package suitable for high-reliability applications.
High-Speed Imaging Systems
The 25.6 MSPS sampling rate and 12-bit resolution make the AD9032AZ ideal for digitizing video signals in medical imaging and industrial inspection cameras.
Communications Receivers
Its high-speed S/H architecture enables direct IF sampling in software-defined radios, improving receiver flexibility and performance.
Radar Signal Processing
The fast conversion rate allows for real-time digitization of radar returns, enabling advanced target detection algorithms.
Scientific Instrumentation
For applications like spectroscopy and particle physics, the 12-bit resolution and high speed provide the dynamic range needed to capture fast, low-amplitude events.
Test and Measurement Equipment
The CFlatPack package and wide temperature range (-25°C to 85°C) make it suitable for benchtop and portable test instruments.
- Q: What is the resolution of the AD9032AZ?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 25.6 MSPS (25.6 million samples per second).
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it use?
- A: The interface type is not specified in the provided data.
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It comes in a 40-pin CFlatPack (ceramic flat pack) package.
