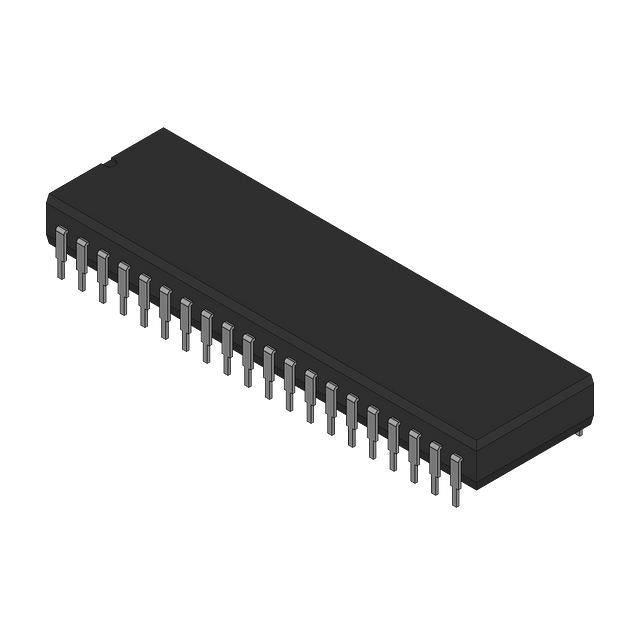

Analog Devices Inc. AD9032BD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $905.68 | $905.68 |
| 15+ | $877.08 | $13,156.20 |
| 25+ | $858.02 | $21,450.50 |
| 50+ | $810.35 | $40,517.50 |
| 100+ | $715.01 | $71,501.00 |
| N+ | $143.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD9032 |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 25.6M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | - |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | Internal |
| Voltage - Supply, Analog | -4.94V ~ -5.45V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -4.94V ~ -5.45V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 40-CDIP (0.900", 22.86mm) |
| Supplier Device Package | 40-CDIP |
The AD9032BD is a high-speed 12-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 25.6M SPS. It is designed for applications that require fast and accurate conversion, such as imaging and communications. The single-channel input and S/H-ADC architecture ensure reliable performance. Packaged in a 40-CDIP ceramic package and rated for -25°C to 85°C, this ADC is a robust choice for commercial and industrial systems.
- High-Speed Performance: The 25.6M SPS sampling rate enables the capture of fast-changing signals with high fidelity.
- High Resolution: 12-bit output provides detailed and accurate data for demanding applications.
- Reliable Architecture: The S/H-ADC design ensures stable and accurate sampling, even at high frequencies.
- Durable Package: The 40-CDIP ceramic package offers good thermal performance and mechanical strength.
High-Speed Imaging Systems
The 25.6M SPS sampling rate and 12-bit resolution make this ADC ideal for high-speed imaging systems, such as digital X-ray and industrial inspection cameras.
Communication Infrastructure
In base stations and communication equipment, this ADC can digitize IF signals with high accuracy, improving signal quality and data throughput.
Medical Ultrasound Equipment
The high sampling rate supports advanced ultrasound imaging, enabling better resolution and faster image acquisition.
Data Acquisition for Research
For scientific research, this ADC provides the speed and precision needed to capture fast transient events and high-frequency waveforms.
Industrial Process Control
In industrial automation, it can be used for high-speed monitoring and control of processes, ensuring precise and timely responses.
- Q: What is the resolution of the AD9032BD?
- A: The AD9032BD features a 12-bit resolution, providing high-precision digital output.
- Q: What is the sampling rate?
- A: It offers a sampling rate of 25.6M SPS, making it suitable for high-speed signal processing.
- Q: How many channels does this ADC have?
- A: This device has a single input channel (1 channel).
- Q: What is the architecture of the AD9032BD?
- A: It uses a S/H-ADC (Sample and Hold) architecture for accurate sampling of fast signals.
- Q: What is the operating temperature range?
- A: The operating temperature range is -25°C to 85°C, suitable for commercial and industrial applications.
- Q: What package is the AD9032BD available in?
- A: It comes in a 40-CDIP (0.900", 22.86mm) ceramic package.
