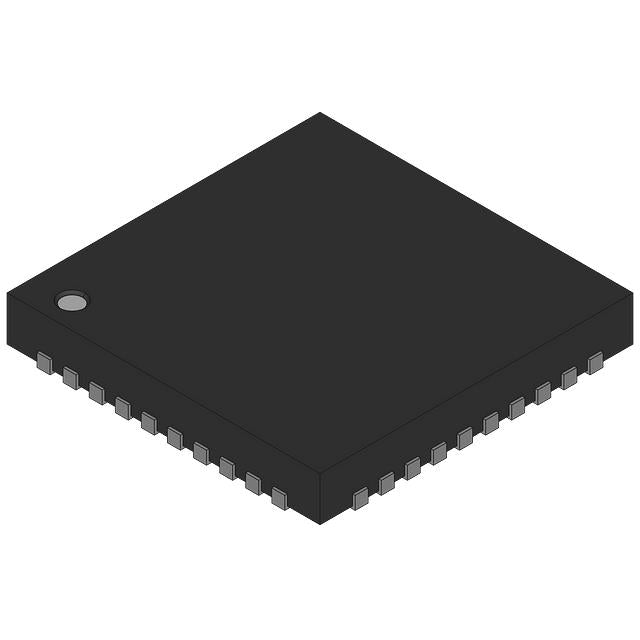

Analog Devices Inc. AD9032BZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $905.68 | $905.68 |
| 15+ | $877.08 | $13,156.20 |
| 25+ | $858.02 | $21,450.50 |
| 50+ | $810.35 | $40,517.50 |
| 100+ | $715.01 | $71,501.00 |
| N+ | $143.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD9032 |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 25.6M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | - |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | Internal |
| Voltage - Supply, Analog | -4.94V ~ -5.45V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -4.94V ~ -5.45V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 40-CFlatPack |
| Supplier Device Package | 40-CFlatPack |
| ROHS |  |
The AD9032BZ from Analog Devices is a 12-bit analog-to-digital converter with a 25.6 MSPS sampling rate. This single-channel device features a sample-and-hold architecture and an internal reference, simplifying high-speed data acquisition designs. Packaged in a 40-pin CFlatPack, it operates over -25°C to 85°C. It is well-suited for medical imaging, communications, and industrial inspection applications requiring a balance of speed and precision.
- 25.6 MSPS Speed: High sampling rate captures fast signals for real-time processing in demanding applications.
- 12-Bit Precision: Provides fine amplitude resolution for accurate signal reproduction.
- Internal Reference: Reduces external component count and simplifies PCB layout.
- Sample-and-Hold Included: Integrated S/H ensures accurate conversion even with varying input frequencies.
- Compact CFlatPack: Low-profile package suitable for space-constrained designs.
High-Speed Data Acquisition
The 25.6 MSPS sampling rate enables digitization of fast analog signals in transient recorders and high-speed data loggers.
Medical Ultrasound
12-bit resolution and high speed support high-quality imaging in ultrasound systems, capturing fine anatomical details.
Communications Receivers
Ideal for IF sampling in digital receivers, converting intermediate frequency signals with high fidelity for demodulation.
Industrial Inspection
Used in non-destructive testing equipment where high-speed ultrasonic or eddy-current signals must be digitized accurately.
Radar Systems
Enables digitization of radar return signals with sufficient speed and resolution for target detection and classification.
Scientific Research
Perfect for physics experiments requiring fast, precise measurement of transient phenomena like laser pulses or particle collisions.
- Q: What is the resolution of the AD9032BZ?
- A: The AD9032BZ is a 12-bit ADC, providing high-resolution conversion with 4096 steps.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 25.6 MSPS (mega-samples per second), suitable for high-speed signal processing.
- Q: How many channels does it have?
- A: It has a single input channel for dedicated signal digitization.
- Q: What is the architecture of the AD9032BZ?
- A: It uses a S/H-ADC architecture with an internal sample-and-hold circuit for accurate conversion.
- Q: Does it have an internal reference?
- A: Yes, it includes an internal reference, simplifying external circuitry.
- Q: What is the operating temperature range?
- A: It operates from -25°C to 85°C, suitable for commercial and industrial applications.
