Analog Devices Inc. AD9032TD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1,646.69 | $1,646.69 |
| 15+ | $1,594.69 | $23,920.35 |
| 25+ | $1,560.02 | $39,000.50 |
| 50+ | $1,473.36 | $73,668.00 |
| 100+ | $1,300.02 | $130,002.00 |
| N+ | $260.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD9032 |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 25.6M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | - |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | Internal |
| Voltage - Supply, Analog | -4.94V ~ -5.45V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -4.94V ~ -5.45V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 40-CDIP (0.900", 22.86mm) |
| Supplier Device Package | 40-CDIP |

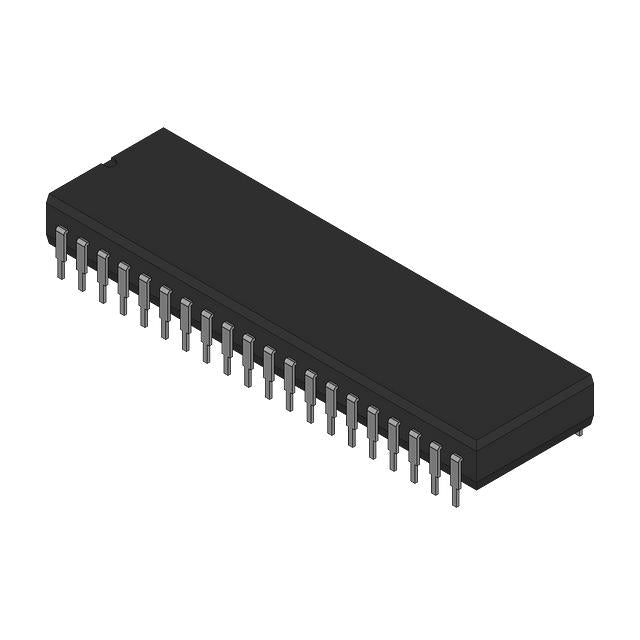

The AD9032TD is a 12-bit, single-channel ADC from Analog Devices, offering a sampling rate of 25.6 MSPS. It features an internal reference and a sample-and-hold architecture, ensuring accurate conversion of high-speed signals. Designed for extreme environments, it operates from -55°C to 125°C and is packaged in a 40-pin CDIP. This ADC is ideal for military, aerospace, and industrial applications requiring high reliability.
- High Sampling Rate: 25.6 MSPS enables capture of fast analog signals with minimal aliasing.
- Integrated Reference: Internal reference reduces external components and improves accuracy.
- Military Temperature Range: -55°C to 125°C ensures operation in harsh environments.
- Proven Architecture: S/H ADC design provides reliable performance in high-speed applications.
- Durable Ceramic Package: 40-CDIP package offers excellent protection against moisture and mechanical stress.
High-Performance Radar Systems
The 25.6 MSPS sampling rate and 12-bit resolution make the AD9032TD suitable for radar signal processing in defense applications.
Military Communication Equipment
Its wide temperature range and internal reference ensure reliable operation in tactical communication systems.
Aerospace Test Instrumentation
The robust 40-CDIP package and high-speed sampling enable accurate measurement in flight test data recorders.
Industrial Ultrasonic Testing
High sampling rate allows precise digitization of ultrasonic echoes for non-destructive testing (NDT).
Medical Imaging Systems
With 12-bit resolution, it can be used in high-end ultrasound or MRI gradient monitoring systems.
- Q: What is the sampling rate of the AD9032TD?
- A: It operates at a maximum sampling rate of 25.6 MSPS (25.6M samples per second).
- Q: What is the resolution?
- A: It provides 12-bit resolution, ensuring accurate digital representation of analog signals.
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What architecture does it use?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: Does it have an internal reference?
- A: Yes, it includes an internal reference for simplified circuit design.
- Q: What is the temperature range?
- A: It is rated for military temperature range from -55°C to 125°C.
