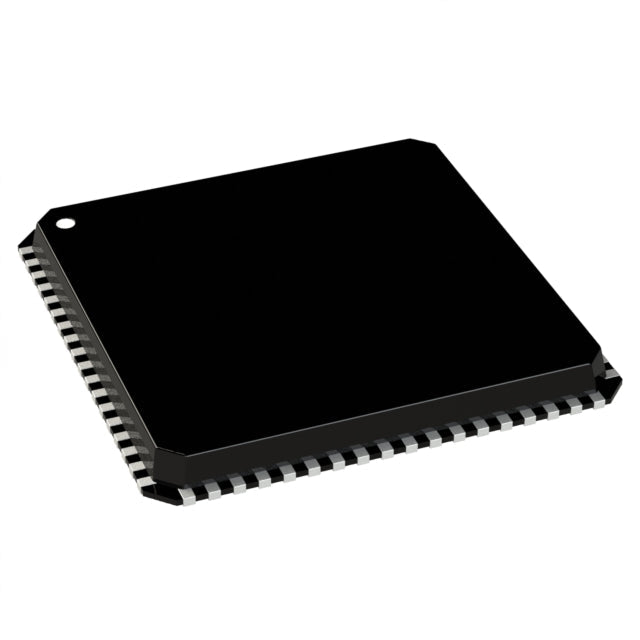

Analog Devices Inc. AD9136BCPZRL
Regular price
$415.00
Regular price
$103.75
Sale price
$415.00
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $415.00 | $415.00 |
| 15+ | $95.45 | $1,431.75 |
| 25+ | $93.38 | $2,334.50 |
| 50+ | $88.19 | $4,409.50 |
| 100+ | $77.81 | $7,781.00 |
| N+ | $15.56 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | TxDAC+® |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Number of D/A Converters | 2 |
| Settling Time | 20ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | JESD204B |
| Reference Type | Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.14V ~ 1.26V |
| INL/DNL (LSB) | ±2, ±1 |
| Architecture | Current Source |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 88-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 88-LFCSP-VQ (12x12) |
| ROHS |  |
AD9136BCPZRL.pdf
×
