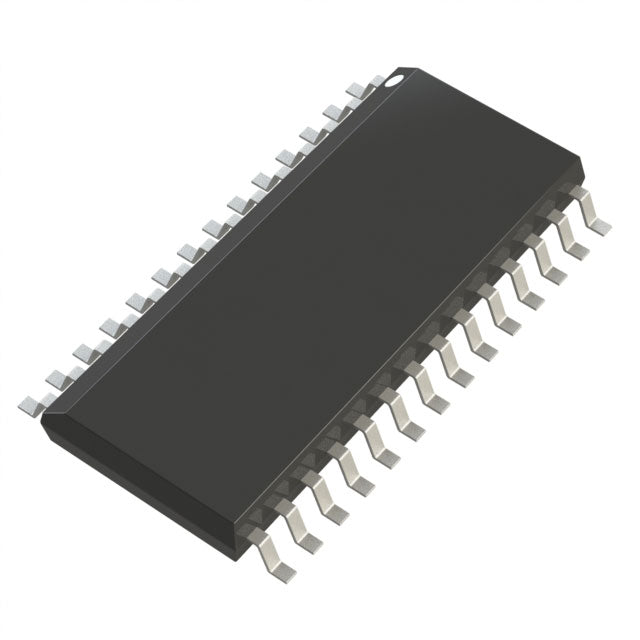

Analog Devices Inc. AD9225ARZRL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $145.60 | $145.60 |
| 15+ | $33.49 | $502.35 |
| 25+ | $32.76 | $819.00 |
| 50+ | $30.94 | $1,547.00 |
| 100+ | $27.30 | $2,730.00 |
| N+ | $5.46 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 25M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.85V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| ROHS |  |
The AD9225ARZRL from Analog Devices is a high-performance 12-bit analog-to-digital converter (ADC) designed for demanding applications requiring fast and accurate signal conversion. With a sampling rate of 25 MSPS and a single input channel, it delivers reliable performance for high-speed data acquisition. Its parallel interface ensures straightforward integration with digital systems, while the S/H-ADC architecture provides excellent linearity. This ADC is well-suited for use in medical instrumentation, industrial automation, and communication systems where precision and speed are paramount.
- High-Speed Conversion: 25 MSPS sampling rate enables real-time digitization of fast-changing signals, critical for high-frequency applications.
- Precision 12-Bit Resolution: Provides fine granularity for accurate signal representation, essential for measurement and control systems.
- Flexible Reference Options: Supports both external and internal references, allowing designers to optimize for accuracy or simplicity.
- Wide Operating Temperature Range: Rated for -40°C to 85°C, ensuring reliable operation in harsh industrial environments.
- Industry-Standard Package: The 28-SOIC package is widely used and easy to integrate into existing PCB designs.
High-Speed Data Acquisition Systems
The AD9225ARZRL's 25 MSPS sampling rate and 12-bit resolution make it ideal for digitizing high-frequency signals in data acquisition systems, ensuring accurate capture of transient events.
Medical Instrumentation
In medical imaging and diagnostic equipment, the ADC's high speed and precision enable clear signal conversion for ultrasound and digital X-ray systems, where detail is critical.
Industrial Automation and Control
With its parallel interface and wide temperature range (-40°C to 85°C), this ADC is suitable for industrial sensors and motor control loops requiring fast, reliable analog-to-digital conversion.
Communication Systems
The device can be used in base stations and software-defined radios to digitize intermediate frequency (IF) signals, leveraging its 25 MSPS throughput for efficient signal processing.
Test and Measurement Equipment
For oscilloscopes and spectrum analyzers, the AD9225ARZRL provides the necessary bandwidth and resolution to accurately measure and analyze a wide range of electronic signals.
- Q: What is the resolution of the AD9225ARZRL?
- A: The AD9225ARZRL is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It supports a maximum sampling rate of 25 MSPS (25M samples per second).
- Q: How many input channels does the AD9225ARZRL have?
- A: It features a single (1) input channel.
- Q: What interface does this ADC use?
- A: It uses a parallel interface for data output.
- Q: What is the architecture of the AD9225ARZRL?
- A: It uses a Successive Approximation Register (S/H-ADC) architecture.
- Q: What is the package type?
- A: It is available in a 28-SOIC (0.295", 7.50mm Width) package.
