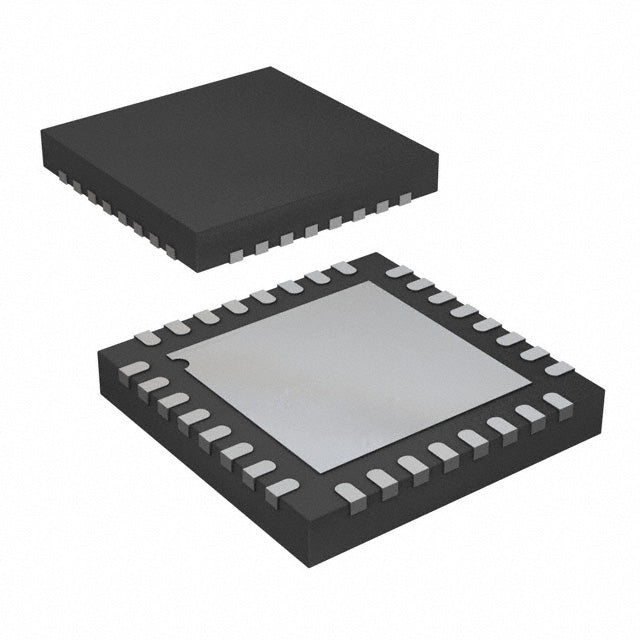

Analog Devices Inc. AD9237BCPZRL7-40
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $57.15 | $57.15 |
| 15+ | $13.15 | $197.25 |
| 25+ | $12.86 | $321.50 |
| 50+ | $12.15 | $607.50 |
| 100+ | $10.72 | $1,072.00 |
| N+ | $2.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 40M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.25V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-WQ (5x5) |
| ROHS |  |
The AD9237BCPZRL7-40 from Analog Devices is a high-performance 12-bit analog-to-digital converter designed for demanding high-speed applications. With a sampling rate of 40 MSPS and a single input channel, it delivers fast and accurate conversion of analog signals. The parallel interface ensures straightforward connection to digital processors and FPGAs. Its S/H-ADC architecture provides reliable sample-and-hold functionality. Operating across a wide temperature range of -40°C to 85°C, this ADC is suitable for industrial and communications systems. The compact 32-WFQFN exposed pad package facilitates efficient PCB layout and thermal management.
- High-Speed Performance: 40 MSPS sampling rate enables real-time digitization of fast signals, critical for communications and test equipment.
- Reliable Accuracy: 12-bit resolution provides fine granularity for precise signal representation in measurement systems.
- Flexible Reference: Supports both external and internal references, allowing designers to optimize for accuracy or simplicity.
- Wide Temperature Range: Rated for -40°C to 85°C, ensuring dependable operation in industrial environments.
- Compact Package: 32-WFQFN exposed pad package saves board space and improves thermal dissipation.
High-Speed Data Acquisition
The 40 MSPS sampling rate and 12-bit resolution make it ideal for high-speed data acquisition systems, such as digital oscilloscopes and spectrum analyzers, where fast and accurate signal capture is essential.
Communications Infrastructure
In wireless base stations and software-defined radios, the AD9237's parallel interface and high-speed sampling enable efficient digitization of IF (intermediate frequency) signals for further digital processing.
Medical Imaging Systems
For ultrasound and other medical imaging equipment, the ADC's 12-bit resolution provides good image detail, while the 40 MSPS rate supports real-time imaging requirements.
Industrial Instrumentation
In industrial automation and test equipment, this converter digitizes fast-changing sensor signals with high fidelity, enabling precise monitoring and control in harsh environments (-40°C to 85°C).
Radar and Sonar Processing
The high sampling rate and parallel output are well-suited for radar and sonar systems, where wide bandwidth signals need to be digitized for target detection and ranging.
Portable Test Equipment
The compact 32-WFQFN package and low power consumption make it suitable for portable battery-powered test instruments that require high-speed measurement capabilities.
- Q: What is the resolution of the AD9237BCPZRL7-40?
- A: The AD9237BCPZRL7-40 is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It supports a sampling rate of 40 MSPS (40M samples per second).
- Q: How many input channels does it have?
- A: This ADC features a single (1) input channel.
- Q: What interface does the AD9237 use?
- A: It uses a Parallel interface for data output.
- Q: What is the architecture of this converter?
- A: It utilizes a S/H-ADC (Sample and Hold) architecture.
- Q: What package is the AD9237BCPZRL7-40 available in?
- A: It comes in a 32-WFQFN Exposed Pad, CSP package.
