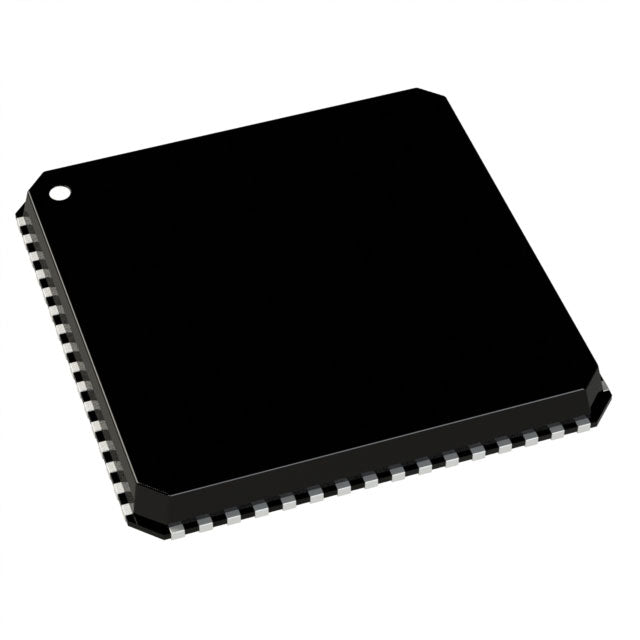

Analog Devices Inc. AD9516-3BCPZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $20.48 | $20.48 |
| 15+ | $19.84 | $297.60 |
| 25+ | $19.40 | $485.00 |
| 50+ | $18.33 | $916.50 |
| 100+ | $16.17 | $1,617.00 |
| N+ | $3.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Type | Clock Generator, Fanout Distribution |
| PLL | Yes |
| Input | Clock |
| Output | CMOS, LVDS, LVPECL |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:14 |
| Differential - Input:Output | Yes/Yes |
| Frequency - Max | 2.95GHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 64-LFCSP-VQ (9x9) |
| ROHS |  |
The AD9516-3BCPZ is a clock generator and fanout distribution IC from Analog Devices. It integrates a PLL and VCO to provide output frequencies up to 2.95 GHz. With one circuit, it accepts a clock input and offers CMOS, LVDS, and LVPECL outputs. Packaged in a 64-VFQFN, it operates over -40°C to 85°C, suitable for a wide range of applications.
- High-Frequency Output: Up to 2.95 GHz for demanding high-speed applications.
- Integrated PLL: Simplifies design and improves jitter performance.
- Multiple Output Standards: CMOS, LVDS, and LVPECL for broad compatibility.
- Wide Temperature Range: -40°C to 85°C for industrial reliability.
High-Speed ADC/DAC Clocking
The 2.95 GHz output and low-jitter PLL make the AD9516-3BCPZ perfect for clocking high-speed data converters in radar, communications, and medical imaging systems.
Telecom Clock Distribution
Its fanout capability and multiple output types allow distribution of synchronized clocks to multiple line cards in telecom switches, ensuring network timing integrity.
FPGA and Processor Clock Generation
Generate multiple clean clock domains for FPGAs and processors from a single reference, reducing board space and improving signal integrity in complex digital designs.
Wireless Base Station Timing
The PLL's jitter cleaning and high-frequency generation capabilities are ideal for wireless infrastructure, providing stable local oscillator signals.
Broadcast Synchronization
Use it to synchronize video and audio processing chains, preventing drift and ensuring accurate timing in professional broadcast environments.
Industrial Test and Measurement
Provides stable, programmable clocks for automated test equipment, enabling precise timing for measurements and control in industrial settings.
- Q: What type of device is the AD9516-3BCPZ?
- A: It is a Clock Generator with Fanout Distribution, featuring an integrated PLL for precise timing.
- Q: Does the AD9516-3BCPZ have a PLL?
- A: Yes, it includes a Phase-Locked Loop (PLL) for frequency synthesis and jitter reduction.
- Q: What input and output types are supported?
- A: It accepts a Clock input and provides CMOS, LVDS, and LVPECL outputs for flexible system integration.
- Q: How many circuits and what maximum frequency?
- A: It has 1 circuit and can generate output frequencies up to 2.95 GHz.
- Q: What is the operating temperature range?
- A: The device operates from -40°C to 85°C.
- Q: What package is available?
- A: It is offered in a 64-VFQFN Exposed Pad, CSP package.
