Analog Devices Inc. AD9543BCPZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $24.14 | $24.14 |
| 15+ | $23.38 | $350.70 |
| 25+ | $22.87 | $571.75 |
| 50+ | $21.60 | $1,080.00 |
| 100+ | $19.06 | $1,906.00 |
| N+ | $3.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Type | Clock Synchronizer |
| PLL | Yes |
| Input | Differential or Single-Ended |
| Output | CML, HCSL, LVDS or Single-Ended |
| Number of Circuits | 2 |
| Ratio - Input:Output | 4:10 |
| Differential - Input:Output | Yes/Yes |
| Frequency - Max | 2.4GHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 1.71V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

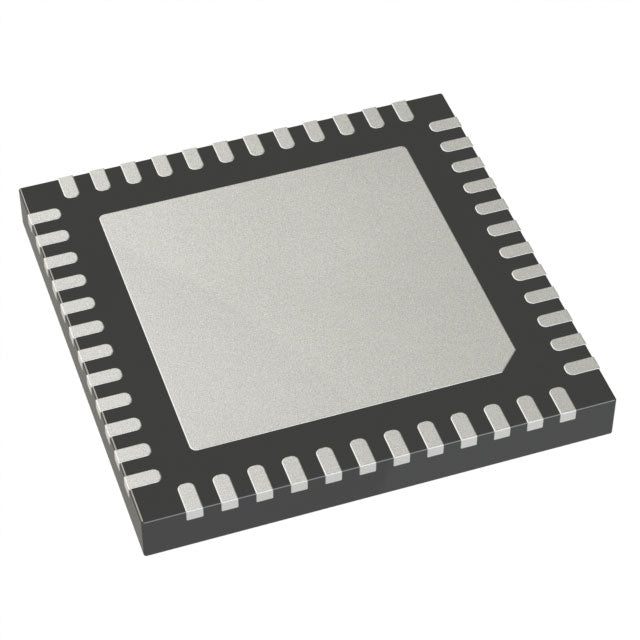

| Package / Case | 48-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 48-LFCSP (7x7) |
| ROHS |  |
The AD9543BCPZ from Analog Devices is a dual-circuit clock synchronizer with an integrated PLL. It accepts differential or single-ended inputs and provides CML, HCSL, LVDS, or single-ended outputs. With a maximum frequency of 2.4GHz, it is designed for high-performance synchronization in applications such as telecommunications, data conversion, and phased array systems. The 48-WFQFN package offers a compact solution for demanding designs.
- Dual Circuits: Provides two independent clock paths for multi-channel synchronization.
- High Frequency: Supports up to 2.4GHz for high-speed applications.
- Flexible I/O: Accepts differential or single-ended inputs and provides multiple output standards.
- Integrated PLL: Ensures precise frequency synthesis and synchronization.
Multi-Channel Clock Synchronization
The AD9543BCPZ, with its 2 circuits, can synchronize multiple clock domains in complex systems, ensuring coherent timing across different subsystems.
High-Frequency Data Conversion
It provides low-jitter, high-frequency clocks up to 2.4GHz for high-speed ADCs and DACs in radar, communications, and instrumentation.
Network Timing and Synchronization
The device can align clocks to network references, making it suitable for IEEE 1588 and Synchronous Ethernet applications in telecom and data centers.
Phased Array Systems
In phased array radar and 5G beamforming, it provides precisely aligned clocks for multiple channels, improving beamforming accuracy.
Test and Measurement Equipment
It generates synchronized clocks for multi-channel test systems, ensuring accurate and repeatable measurements.
- Q: What type of device is the AD9543BCPZ?
- A: It is a Clock Synchronizer with an integrated PLL.
- Q: What input types does it support?
- A: It supports Differential or Single-Ended inputs.
- Q: What output types are available?
- A: It provides CML, HCSL, LVDS, or Single-Ended outputs.
- Q: How many circuits does it have?
- A: It has 2 circuits.
- Q: What is the maximum frequency?
- A: The maximum frequency is 2.4GHz.
- Q: What is the package type?
- A: It comes in a 48-WFQFN Exposed Pad, CSP package.
