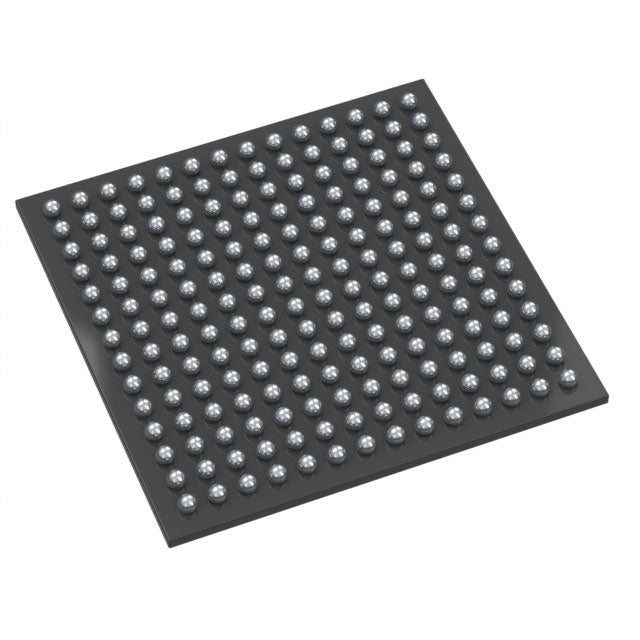

Analog Devices Inc. AD9625BBP-2.5
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1,383.52 | $1,383.52 |
| 15+ | $1,339.83 | $20,097.45 |
| 25+ | $1,310.71 | $32,767.75 |
| 50+ | $1,237.89 | $61,894.50 |
| 100+ | $1,092.26 | $109,226.00 |
| N+ | $218.45 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 2.5G |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | JESD204B |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.26V ~ 1.32V, 2.4V ~ 2.6V |
| Voltage - Supply, Digital | 1.26V ~ 1.32V, 2.4V ~ 2.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 196-LFBGA Exposed Pad |
| Supplier Device Package | 196-BGA-ED (12x12) |
| ROHS |  |
The Analog Devices AD9625BBP-2.5 is a cutting-edge 12-bit analog-to-digital converter with an exceptional sampling rate of 2.5G SPS. This single-channel device utilizes a S/H-ADC architecture and an internal reference for high accuracy. Its JESD204B serial interface reduces pin count and simplifies high-speed data routing. Packaged in a 196-LFBGA with exposed pad, it is designed for demanding applications such as radar, electronic warfare, and broadband communications, where maximum bandwidth and performance are paramount.
- Industry-Leading Speed: 2.5G SPS sampling rate allows for direct digitization of RF signals, eliminating multiple down-conversion stages.
- Modern JESD204B Interface: Reduces board space and simplifies layout compared to parallel interfaces, enabling higher channel density.
- High Dynamic Performance: 12-bit resolution at these speeds ensures excellent signal fidelity for demanding EW and radar applications.
- Integrated Internal Reference: Minimizes external components and improves system stability.
High-Performance Radar Systems
The 2.5G SPS sampling rate enables the digitization of wideband radar returns, improving range resolution and target detection in defense and weather radar.
Broadband Communications
In 5G NR and DOCSIS 3.1 infrastructure, this ADC's high speed and JESD204B interface support direct RF sampling, simplifying receiver architectures.
Advanced Test Equipment
For high-bandwidth oscilloscopes and signal analyzers, the AD9625BBP-2.5 provides the necessary speed to capture fast transients and complex modulated signals.
Electronic Warfare (EW)
The wide instantaneous bandwidth and high dynamic range make it suitable for EW systems that need to detect and analyze a broad spectrum of threats.
Medical Imaging (Ultrasound)
High-speed digitization of ultrasound signals allows for higher resolution imaging and advanced beamforming techniques in premium medical equipment.
Scientific Research
In particle physics and astronomy, this ADC is used to digitize fast detector signals, enabling precise time and energy measurements.
- Q: What is the ADC type of the AD9625BBP-2.5?
- A: It is a high-speed, single-channel 12-bit ADC with a S/H-ADC architecture.
- Q: What is the resolution?
- A: The resolution is 12 bits.
- Q: What is the maximum sampling rate?
- A: It supports a sampling rate of 2.5G SPS.
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interface does it use?
- A: It uses the JESD204B high-speed serial interface.
- Q: What is the package type?
- A: It is available in a 196-LFBGA package with exposed pad.
