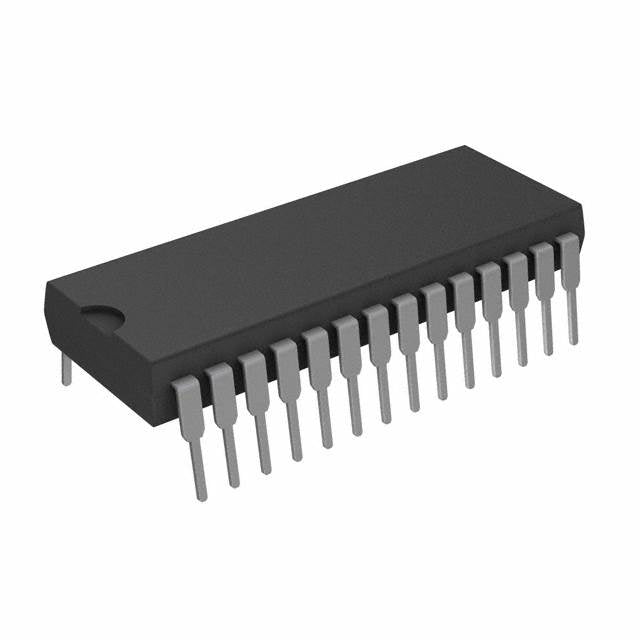

Analog Devices Inc. AD974ANZ
Regular price
$41.66
Regular price
$43.85
Sale price
$41.66
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $41.66 | $41.66 |
| 15+ | $40.34 | $605.10 |
| 25+ | $39.47 | $986.75 |
| 50+ | $37.27 | $1,863.50 |
| 100+ | $32.89 | $3,289.00 |
| N+ | $6.58 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 4 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 200k |
| Data Interface | Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PDIP |
AD974ANZ - High-Performance 16-Bit Data Acquisition System
The AD974ANZ from Analog Devices is a precision 4-channel, 16-bit data acquisition system (DAS) designed for high-reliability applications requiring accurate analog-to-digital conversion. With a 200kSPS sampling rate and serial data interface, this IC delivers exceptional performance for industrial, automotive, medical, and aerospace systems.
Key Features & Benefits
- 16-Bit Resolution: Ensures precise signal conversion for critical measurement applications
- 4-Channel Architecture: Simultaneous monitoring of multiple analog inputs
- 200kSPS Sampling Rate: Fast data acquisition for real-time processing
- Serial Interface: Simplified integration with microcontrollers and processors
- Wide Operating Range: -40°C to 85°C for harsh environment deployment
- Through-Hole Mounting: Reliable 28-DIP package for robust board assembly
- Dual Supply Architecture: Separate analog and digital voltage sources (4.75V ~ 5.25V)
Applications
Ideal for precision instrumentation, process control systems, medical diagnostic equipment, automotive sensors, industrial automation, test and measurement equipment, and aerospace data logging systems.
Quality & Compliance
Authorized distribution with full traceability. RoHS/REACH compliant. Long lifecycle commitment for design-in confidence.
AD974ANZ.pdf
×
