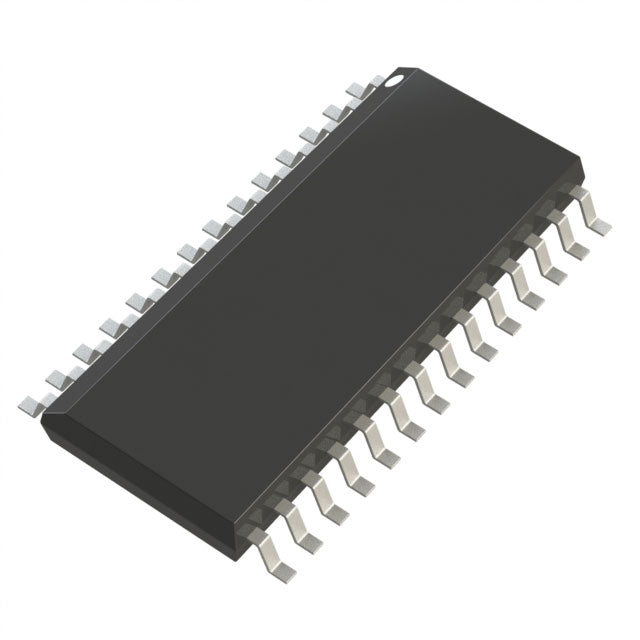

Analog Devices Inc. AD976ABRZRL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| ROHS |  |
The AD976ABRZRL is a high-performance 16-bit analog-to-digital converter (ADC) from Analog Devices, designed for applications requiring precise signal conversion. It offers a sampling rate of 200k SPS and features a single input channel with a parallel interface for efficient data transfer. Its S/H-ADC architecture ensures accurate sampling, while the external or internal reference options provide flexibility in system design. Housed in a compact 28-SOIC package, this ADC is suitable for industrial, medical, and automotive applications where reliability and precision are paramount.
- High Resolution: 16-bit resolution provides exceptional detail and accuracy in signal conversion, ideal for precision measurement applications.
- Flexible Reference Options: Supports both external and internal references, allowing designers to optimize performance for specific system requirements.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, making it suitable for harsh industrial and automotive environments.
- Parallel Interface: Enables high-speed data transfer to microcontrollers or DSPs, simplifying system integration.
High-Precision Sensor Digitization
The 16-bit resolution and 200k SPS sampling rate make the AD976ABRZRL ideal for digitizing precision sensors like strain gauges and thermocouples, ensuring accurate representation of analog signals.
Industrial Data Acquisition Systems
With its parallel interface and single-channel design, this ADC is well-suited for multi-channel data acquisition systems where multiple ADCs are used in parallel to capture synchronized data from various industrial sensors.
Medical Instrumentation
The high resolution and low noise performance are critical for medical devices such as patient monitoring systems and diagnostic equipment, where precise signal conversion is essential for accurate readings.
Automotive Sensor Interfaces
Operating over a -40°C to 85°C temperature range, the AD976ABRZRL is reliable for automotive applications like battery management systems and motor control, converting analog signals from temperature and current sensors.
Audio and Vibration Analysis
The 16-bit resolution provides a high dynamic range, making it suitable for audio digitization and vibration analysis in industrial predictive maintenance, capturing fine details in the signal.
Laboratory Test Equipment
Benchtop instruments such as digital multimeters and data loggers benefit from the accuracy and stability of this ADC, ensuring reliable measurements in research and calibration environments.
- Q: What is the resolution of the AD976ABRZRL?
- A: The AD976ABRZRL is a 16-bit analog-to-digital converter (ADC).
- Q: What is the maximum sampling rate?
- A: It supports a sampling rate of 200k SPS (samples per second).
- Q: How many input channels does it have?
- A: This ADC features a single (1) input channel.
- Q: What digital interface does it use?
- A: It uses a Parallel digital interface for data output.
- Q: What is the architecture of this ADC?
- A: It utilizes a S/H-ADC (Sample and Hold) architecture.
- Q: What package is the AD976ABRZRL available in?
- A: It comes in a 28-SOIC (0.295", 7.50mm Width) package.
