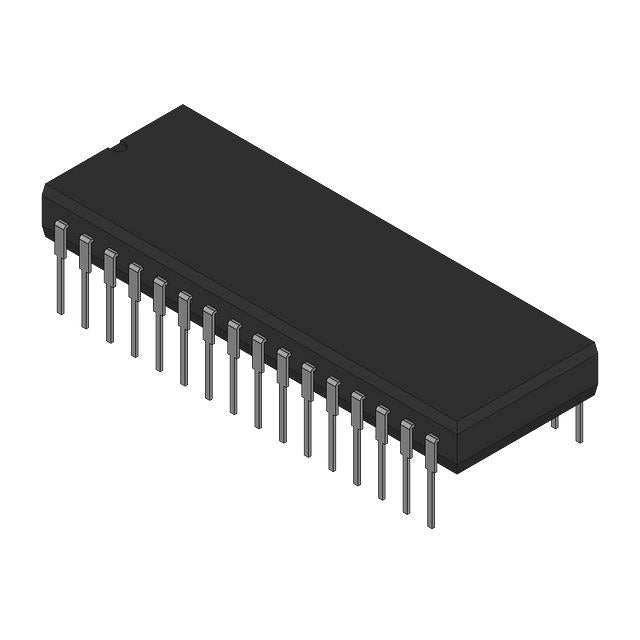

Analog Devices Inc. ADADC80-10
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $162.84 | $162.84 |
| 15+ | $37.45 | $561.75 |
| 25+ | $36.64 | $916.00 |
| 50+ | $34.60 | $1,730.00 |
| 100+ | $30.53 | $3,053.00 |
| N+ | $6.11 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | ADADC80 |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 40M |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V, ±14V ~ 16V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V, ±14V ~ 16V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 32-CDIP (0.910", 23.12mm) |
| Supplier Device Package | 32-SBDIP-H |
The Analog Devices ADADC80-10 is a high-speed, dual-channel, 12-bit analog-to-digital converter designed for demanding applications that require fast and accurate signal conversion. It offers a sampling rate of 40 MSPS and a parallel interface for high-throughput data transfer. The device is housed in a robust 32-CDIP ceramic package, ensuring durability and reliable operation in harsh environments. This ADC is well-suited for industrial control, military systems, and professional audio applications where performance and reliability are critical.
- High-Speed Performance: 40 MSPS sampling rate enables the digitization of fast-changing signals, making it ideal for real-time control and measurement.
- Dual-Channel Capability: Two channels allow for simultaneous sampling of multiple signals, reducing system complexity and improving phase matching.
- Rugged Ceramic Package: The 32-CDIP package provides excellent mechanical and thermal stability, suitable for military and industrial environments.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, ensuring performance in extreme conditions.
- Simple Parallel Interface: Facilitates easy integration with existing digital systems without the need for complex serial protocols.
High-Speed Industrial Control
The 40 MSPS sampling rate and 12-bit resolution make the ADADC80-10 suitable for high-speed industrial control loops, such as motor drives and power inverters, where fast and accurate current/voltage sensing is required.
Military and Aerospace Systems
The rugged 32-CDIP ceramic package and wide temperature range make it reliable for military avionics, radar, and guidance systems that operate in extreme conditions.
Professional Audio Equipment
In high-end audio mixing consoles and digital effects processors, the high sampling rate allows for accurate digitization of audio signals, preserving the nuances of the original sound.
Scientific Instrumentation
For particle physics experiments and other scientific research, this ADC can digitize fast transient signals from detectors with high fidelity.
Data Acquisition for Power Systems
In power grid monitoring and protection equipment, the high speed and dual channels enable simultaneous sampling of voltage and current for accurate power quality analysis.
Embedded Systems
The parallel interface makes it easy to connect to a wide range of microprocessors and DSPs, making it a versatile choice for custom embedded data acquisition boards.
- Q: What is the resolution of the ADADC80-10?
- A: The ADADC80-10 is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It has a sampling rate of 40 MSPS (mega samples per second).
- Q: How many channels does it have?
- A: This ADC features 2 input channels.
- Q: What interface does it use?
- A: It uses a parallel interface for data output.
- Q: What is the package type?
- A: It is housed in a 32-CDIP (ceramic dual in-line package).
- Q: What is the operating temperature range?
- A: It operates over a temperature range of -40°C to 85°C.
