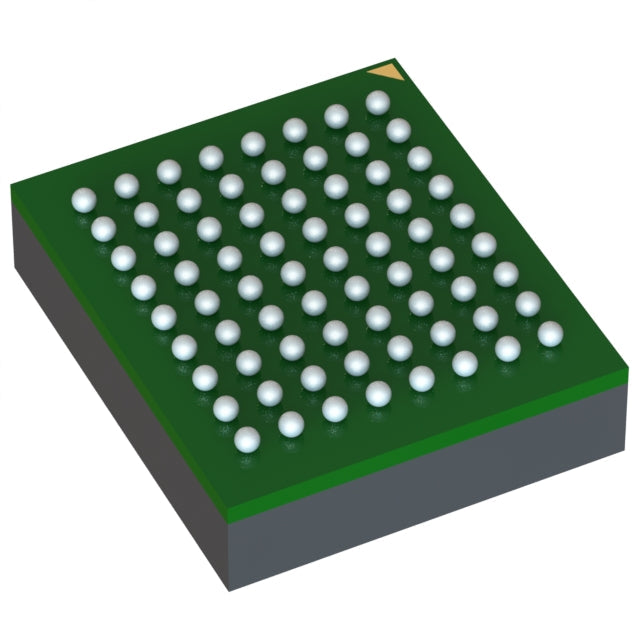

Analog Devices Inc. ADAQ8092BBCZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 325.26 | Dhs. 325.26 |
| 15+ | Dhs. 314.99 | Dhs. 4,724.85 |
| 25+ | Dhs. 308.14 | Dhs. 7,703.50 |
| 50+ | Dhs. 291.02 | Dhs. 14,551.00 |
| 100+ | Dhs. 256.79 | Dhs. 25,679.00 |
| N+ | Dhs. 51.36 | Price Inquiry |
Request Quote / Inquiry
ADAQ8092BBCZ - Dual-Channel 14-Bit Data Acquisition System
The ADAQ8092BBCZ from Analog Devices is a high-performance dual-channel data acquisition system (DAS) designed for precision signal processing in mission-critical applications. This integrated μModule solution delivers 14-bit resolution at an impressive 105 MSPS sampling rate, making it ideal for aerospace, industrial instrumentation, medical imaging, and telecommunications systems.
Key Features & Benefits
- Dual-Channel Architecture: Simultaneous sampling on 2 independent channels for multi-signal acquisition
- High-Speed Performance: 105 MSPS sampling rate with 14-bit resolution ensures accurate signal capture
- Serial Data Interface: Simplified system integration with reduced pin count and board complexity
- Wide Operating Range: -40°C to 105°C temperature range for harsh environment deployment
- Flexible Power Supply: Single supply operation (1.7V-1.9V, 3.2V-5V) for versatile system design
- Compact Form Factor: 72-CSPBGA (7x6mm) surface mount package saves valuable board space
- RoHS Compliant: Meets environmental standards for global market deployment
Applications
This data acquisition system excels in demanding applications requiring precision analog-to-digital conversion, including radar systems, software-defined radio, test & measurement equipment, ultrasound imaging, and high-speed data logging.
Authorized distributor with full traceability and long lifecycle support. Contact us for volume pricing, custom packaging options, and technical consultation.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 2 |
| Resolution (Bits) | 14 b |
| Sampling Rate (Per Second) | 105M |
| Data Interface | Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 1.7V ~ 1.9V, 3.2V ~ 5V, 1.7V ~ 1.9V, 3.2V ~ 5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 72-FBGA, CSPBGA |
| Supplier Device Package | 72-CSPBGA (7x6) |
| ROHS |  |
ADAQ8092BBCZ.pdf
