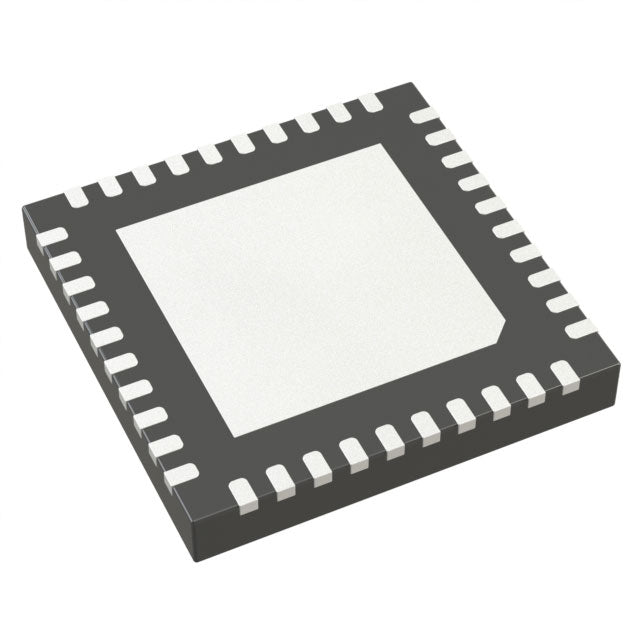

Analog Devices Inc. ADAS3022SCPZ-EP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $66.06 | $66.06 |
| 15+ | $63.98 | $959.70 |
| 25+ | $62.59 | $1,564.75 |
| 50+ | $59.11 | $2,955.50 |
| 100+ | $52.16 | $5,216.00 |
| N+ | $10.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 40-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 40-LFCSP-VQ (6x6) |
| ROHS |  |
The ADAS3022SCPZ-EP is a high-precision, 16-bit, 8-channel analog-to-digital converter (ADC) from Analog Devices, specifically designed for demanding industrial and harsh environment applications. It integrates a multiplexer and ADC on a single chip, enabling simultaneous sampling of up to 8 analog inputs at speeds up to 1 MSPS. The device features both external and internal reference options and communicates via a standard SPI interface. Housed in a compact 40-lead VFQFN package, it operates over an extended temperature range of -55°C to +105°C, making it a robust solution for industrial automation, power monitoring, and defense systems.
- Multi-Channel Integration: 8-channel MUX reduces external components and simplifies system design.
- High Precision: 16-bit resolution ensures accurate measurement in critical industrial applications.
- Extended Temperature Range: Operates reliably from -55°C to +105°C for harsh environments.
- High-Speed Sampling: 1 MSPS throughput enables real-time monitoring of fast-changing signals.
Industrial Automation and Control
The ADAS3022SCPZ-EP's 8-channel multiplexing and 16-bit resolution make it ideal for monitoring multiple sensors in PLCs and industrial control systems, ensuring precise process control.
Power Line Monitoring
With its high-voltage input capability and 1 MSPS sampling rate, it can accurately digitize voltage and current waveforms for power quality analysis and protection relays.
Data Acquisition Systems
In multi-channel DAQ systems, this ADC simplifies design by integrating an 8-channel mux, reducing component count and board space.
Avionics and Defense
The extended temperature range (-55°C to +105°C) makes it suitable for harsh military and aerospace environments, such as flight control systems.
Medical Instrumentation
Its precision and multi-channel capability are well-suited for patient monitoring systems that require simultaneous measurement of multiple vital signs.
Energy and Smart Grid
The ADAS3022SCPZ-EP can be used in smart grid infrastructure for monitoring and controlling power distribution networks.
- Q: What is the ADAS3022SCPZ-EP?
- A: It is a 16-bit, 8-channel, multiplexed analog-to-digital converter (MUX-ADC) from Analog Devices, designed for high-voltage industrial systems.
- Q: What is the resolution of the ADAS3022SCPZ-EP?
- A: It offers 16-bit resolution, providing high precision for industrial measurement and control.
- Q: What is the sampling rate?
- A: The ADAS3022SCPZ-EP achieves a sampling rate of 1 MSPS (Mega Samples Per Second).
- Q: How many input channels does it have?
- A: It features 8 multiplexed input channels, allowing multiple analog signals to be digitized by a single ADC.
- Q: What interface does it use?
- A: It uses a serial peripheral interface (SPI) for communication.
- Q: What is the operating temperature range?
- A: It is rated for extended industrial temperature range from -55°C to +105°C.
