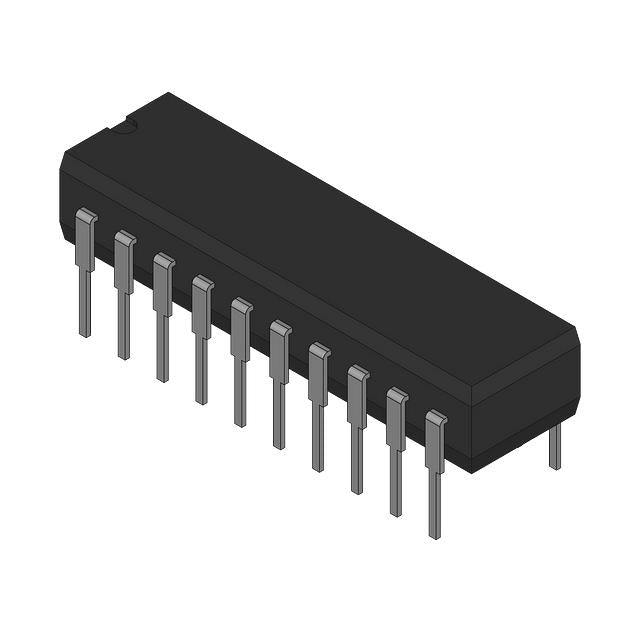

National Semiconductor ADC08062BIN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $65.56 | $65.56 |
| 15+ | $15.08 | $226.20 |
| 25+ | $14.75 | $368.75 |
| 50+ | $13.93 | $696.50 |
| 100+ | $12.29 | $1,229.00 |
| N+ | $2.46 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 1.5M |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | External |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
The ADC08062BIN is an 8-bit analog-to-digital converter from National Semiconductor, offering a fast sampling rate of 1.5M SPS. It features two input channels and a parallel interface for straightforward data transfer. This S/H-ADC operates with an external reference and is designed for a temperature range of -40°C to 85°C. Packaged in a 20-DIP format, it is suitable for a variety of applications, including industrial control and educational projects.
- Fast Sampling: 1.5M SPS allows for high-speed signal capture in dynamic systems.
- Dual Channels: Enables simultaneous monitoring of two analog signals.
- Simple Parallel Output: Easy to interface with microprocessors and digital logic.
- Durable DIP Package: Ideal for prototyping and through-hole PCB designs.
Legacy Industrial Control
The ADC08062BIN's parallel interface and 8-bit resolution make it a reliable choice for retrofitting legacy industrial control systems that require simple digital integration.
Educational Kits
Its DIP package and straightforward parallel interface make it ideal for educational electronics kits, helping students learn about ADC fundamentals.
Audio Signal Digitization
With a 1.5M SPS sampling rate, this ADC can digitize audio signals for basic sound processing applications, such as voice recorders or simple effects units.
Automotive Sensor Interfaces
The wide temperature range and dual channels allow for monitoring two sensors simultaneously, such as temperature and pressure, in automotive environments.
Robotics Feedback Systems
In robotics, the ADC08062BIN can convert analog signals from potentiometers or encoders, providing position feedback to the control system.
- Q: What is the ADC08062BIN?
- A: It is an 8-bit dual-channel analog-to-digital converter (ADC) from National Semiconductor.
- Q: What is the resolution?
- A: The resolution is 8 bits.
- Q: What is the sampling rate?
- A: It has a sampling rate of 1.5M SPS.
- Q: How many channels does it have?
- A: It features 2 input channels.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the package type?
- A: It comes in a 20-DIP (0.300", 7.62mm) package.
