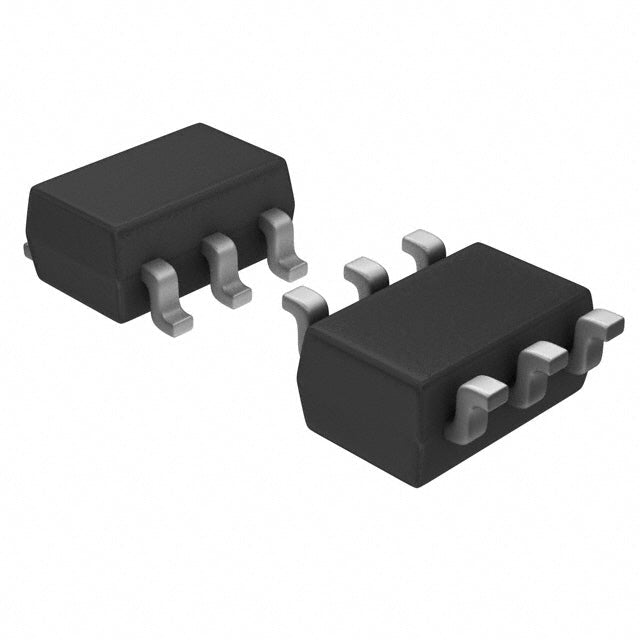

Texas Instruments ADC081S051CIMF/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.47 | $1.47 |
| 15+ | $1.43 | $21.45 |
| 25+ | $1.40 | $35.00 |
| 50+ | $1.32 | $66.00 |
| 100+ | $1.16 | $116.00 |
| N+ | $0.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI, DSP |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| ROHS |  |
The ADC081S051CIMF/NOPB from Texas Instruments is an 8-bit, single-channel analog-to-digital converter (ADC) capable of sampling at rates up to 500k SPS. It features a successive approximation register (SAR) architecture with an integrated sample-and-hold circuit, ensuring accurate conversion of fast-changing signals. The device communicates via a standard SPI or DSP-compatible serial interface, making it easy to connect to microcontrollers and DSPs. Housed in a space-saving SOT-23-6 package, it operates over a temperature range of -40°C to 85°C and is well-suited for portable instrumentation, industrial sensing, and battery-powered applications.
- High-Speed Sampling: 500k SPS throughput enables capture of fast transient signals for responsive control systems.
- Compact Footprint: SOT-23-6 package minimizes board space, ideal for space-constrained designs.
- Simple Digital Interface: SPI/DSP compatibility ensures easy integration with a wide range of microcontrollers.
- Wide Temperature Range: -40°C to 85°C operation guarantees reliability in harsh industrial environments.
Portable Sensor Digitization
The 8-bit resolution and 500k SPS sampling rate make it ideal for digitizing analog sensor outputs in portable devices, where low power and small size are critical.
Battery Monitoring Systems
Its single-channel input and SPI interface allow for straightforward integration into battery management systems to monitor voltage and current levels.
Data Acquisition Front-Ends
With a 500k SPS throughput, it can serve as a front-end for low-speed data acquisition systems, capturing dynamic signals with adequate fidelity.
Industrial Control Loops
The SOT-23-6 package and supply-referenced operation simplify PCB layout in industrial control applications requiring local analog-to-digital conversion.
Consumer Electronics Interfaces
Its small footprint and SPI/DSP interface make it suitable for converting analog control signals (e.g., knobs, sliders) in consumer devices.
Temperature Sensing
When paired with a thermistor or RTD, the ADC081S051 can digitize temperature readings for environmental monitoring or thermal protection circuits.
- Q: What is the resolution of the ADC081S051CIMF/NOPB?
- A: It is an 8-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 500k SPS (samples per second).
- Q: How many input channels does it have?
- A: It features a single (1) input channel.
- Q: What digital interface does it use?
- A: It supports SPI and DSP-compatible serial interfaces.
- Q: What is the ADC architecture?
- A: It uses a successive approximation register (SAR) architecture with a sample-and-hold (S/H) circuit.
- Q: What is the package type?
- A: It comes in a compact SOT-23-6 package.
