National Semiconductor ADC08B3000CIYB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $513.56 | $513.56 |
| 15+ | $497.34 | $7,460.10 |
| 25+ | $486.53 | $12,163.25 |
| 50+ | $459.50 | $22,975.00 |
| 100+ | $405.44 | $40,544.00 |
| N+ | $81.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 3G |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Folding Interpolating |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.8V ~ 2V |
| Voltage - Supply, Digital | 1.8V ~ 2V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 128-LQFP Exposed Pad |
| Supplier Device Package | 128-HLQFP (20x20) |

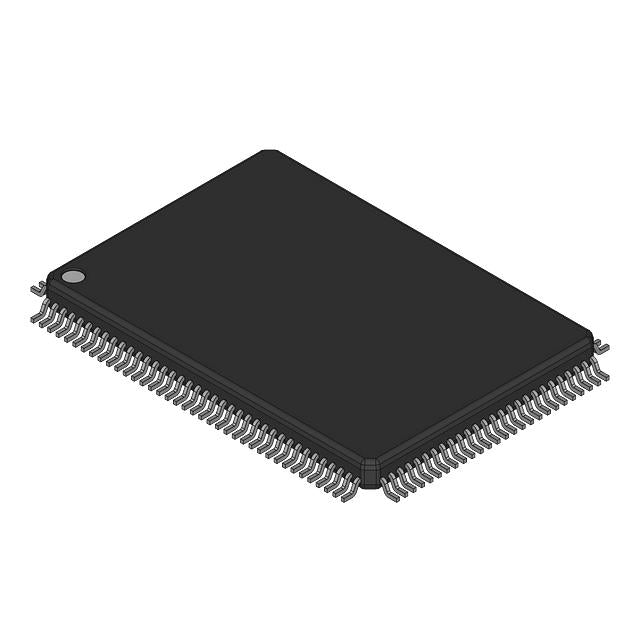

The ADC08B3000CIYB from National Semiconductor is an 8-bit analog-to-digital converter with an exceptional 3 GSPS sampling rate. This single-channel device features a sample-and-hold architecture and offers both LVDS and parallel/serial outputs for flexible high-speed data transfer. Housed in a 128-pin LQFP with exposed pad, it operates over -40°C to 85°C. It is designed for demanding applications including radar, broadband communications, and high-speed test equipment where maximum bandwidth is critical.
- 3 GSPS Sampling Rate: Enables direct digitization of multi-gigahertz signals, eliminating multiple down-conversion stages.
- LVDS Outputs: Low-voltage differential signaling reduces EMI and supports high-speed data transmission over longer distances.
- Exposed Pad Package: The 128-LQFP with exposed pad improves thermal performance for sustained high-speed operation.
- Wide Temperature Range: -40°C to 85°C operation ensures reliability in both commercial and industrial environments.
- Flexible Output Modes: Parallel and serial options allow easy interfacing with various FPGA and DSP architectures.
High-Speed Oscilloscopes
The 3 GSPS sampling rate enables real-time digitization of fast transient signals in digital storage oscilloscopes and signal analyzers.
Radar and Electronic Warfare
Its ultra-high sampling rate supports wideband radar signal processing and electronic countermeasure systems requiring instantaneous bandwidth capture.
5G and Broadband Communications
Direct RF sampling of multi-GHz carriers is possible, simplifying receiver architectures in 5G base stations and software-defined radios.
Medical Imaging (Ultrasound)
High-speed conversion of ultrasound echo signals allows high-resolution imaging with fine temporal detail for diagnostic equipment.
Scientific Instrumentation
Used in particle physics experiments and spectroscopy where fast transient events must be captured with nanosecond precision.
Automotive Radar (77GHz)
Enables digitization of wideband FMCW radar signals for advanced driver-assistance systems (ADAS) and autonomous vehicles.
- Q: What is the resolution of the ADC08B3000CIYB?
- A: It is an 8-bit ADC, offering 256 discrete output levels for high-speed signal digitization.
- Q: What is the maximum sampling rate?
- A: The ADC08B3000CIYB supports a sampling rate of 3 GSPS (giga-samples per second), ideal for ultra-high-speed applications.
- Q: How many channels does this ADC have?
- A: It has a single input channel, optimized for high-bandwidth signal capture.
- Q: What interfaces are available?
- A: It provides both LVDS and parallel/serial output options for flexible digital system integration.
- Q: What is the architecture of this device?
- A: It uses a S/H-ADC (sample-and-hold plus ADC) architecture to achieve high-speed conversion.
- Q: What package is the ADC08B3000CIYB offered in?
- A: It comes in a 128-pin LQFP with exposed pad for enhanced thermal dissipation.
