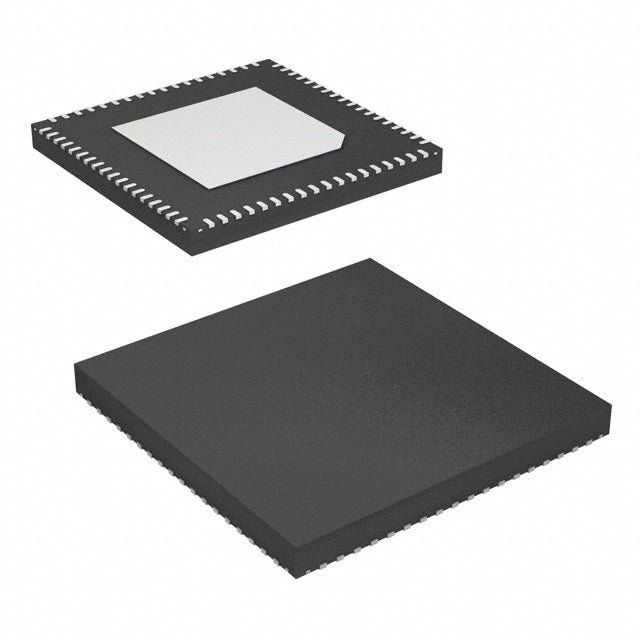

Texas Instruments ADC32RF44IRMPR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.00 | $4.00 |
| 15+ | $1,340.38 | $20,105.70 |
| 25+ | $1,311.25 | $32,781.25 |
| 50+ | $1,238.40 | $61,920.00 |
| 100+ | $1,092.71 | $109,271.00 |
| N+ | $218.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 2.6G |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | JESD204B, Serial |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External |
| Voltage - Supply, Analog | 1.1V ~ 1.25V, 1.8V ~ 2V |
| Voltage - Supply, Digital | 1.1V ~ 1.2V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 72-VFQFN Exposed Pad |
| Supplier Device Package | 72-VQFN (10x10) |
| ROHS |  |
The ADC32RF44IRMPR is a 14-bit, dual-channel analog-to-digital converter from Texas Instruments, offering a sampling rate of 2.6 GSPS. It features a JESD204B serial interface for high-speed data output and an external reference for precise operation. The 72-VFQFN package is designed for space-constrained applications. This ADC is ideal for radar, 5G, and communications systems requiring high bandwidth and low latency.
- Dual-Channel Efficiency: Two channels in one device reduce system size and power consumption.
- High Resolution: 14-bit resolution provides excellent signal-to-noise ratio for demanding applications.
- Fast Data Transfer: JESD204B interface supports high-speed serial communication with minimal pin count.
- Robust Design: Wide temperature range and exposed pad package ensure thermal stability.
Phased Array Radar
Dual-channel configuration with 2.6 GSPS sampling enables compact, high-performance radar beamforming systems.
5G NR Base Stations
Direct RF sampling capability supports massive MIMO and wideband carrier aggregation in 5G infrastructure.
Satellite Ground Stations
High dynamic range and speed allow digitization of multiple satellite signals simultaneously.
Electronic Warfare
Fast sampling and dual channels provide wideband surveillance and jamming signal processing.
Medical Ultrasound
High-speed conversion improves image resolution and frame rate in advanced diagnostic systems.
Industrial IoT
Enables high-speed condition monitoring and predictive maintenance in industrial automation.
- Q: What is the ADC32RF44IRMPR?
- A: It is a 14-bit, 2-channel analog-to-digital converter from Texas Instruments.
- Q: What is the sampling rate?
- A: The sampling rate is 2.6 GSPS.
- Q: What interfaces are supported?
- A: It supports JESD204B and Serial interfaces.
- Q: What is the architecture?
- A: The architecture is ADC (pipeline).
- Q: What is the package type?
- A: It comes in a 72-VFQFN Exposed Pad package.
- Q: What is the temperature range?
- A: It operates from -40°C to 85°C.
