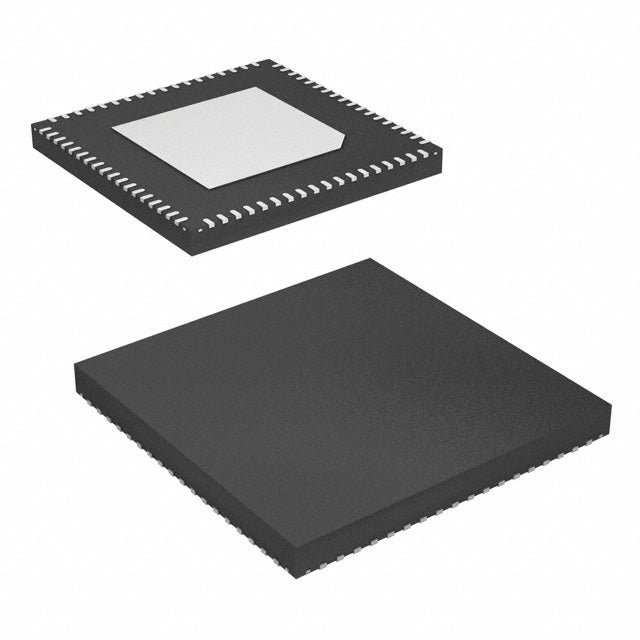

Texas Instruments ADC32RF45IRMPT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.00 | $4.00 |
| 15+ | $1,793.78 | $26,906.70 |
| 25+ | $1,754.78 | $43,869.50 |
| 50+ | $1,657.30 | $82,865.00 |
| 100+ | $1,462.32 | $146,232.00 |
| N+ | $292.46 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 3G |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | JESD204B |
| Configuration | - |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 8 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.1V ~ 2V |
| Voltage - Supply, Digital | 1.1V ~ 1.2V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 72-VFQFN Exposed Pad |
| Supplier Device Package | 72-VQFN (10x10) |
| ROHS |  |
The Texas Instruments ADC32RF45IRMPT is a high-performance, dual-channel 14-bit analog-to-digital converter designed for demanding RF sampling applications. With a sampling rate of up to 3 GSPS and a JESD204B interface, it enables direct digitization of high-frequency signals. Its internal reference and compact 72-VFQFN package make it suitable for space-constrained designs in communications, test, and defense systems.
- High-Speed Sampling: 3 GSPS sampling rate enables direct RF sampling, eliminating multiple analog mixing stages.
- Excellent Resolution: 14-bit resolution provides high dynamic range for capturing weak signals in noisy environments.
- Dual-Channel Integration: Two channels in one package reduce board space and power consumption in multi-channel systems.
- Fast Digital Interface: JESD204B interface simplifies high-speed data transfer to FPGAs and reduces pin count.
High-Speed Data Acquisition
The 3 GSPS sampling rate and 14-bit resolution make it ideal for high-bandwidth data acquisition systems in radar and lidar applications, capturing fast transient signals with high fidelity.
Wireless Communications Infrastructure
In 5G and advanced MIMO base stations, the dual-channel ADC32RF45IRMPT digitizes wideband IF signals directly, simplifying receiver architectures and improving signal quality.
Test and Measurement Equipment
For oscilloscopes and spectrum analyzers, the high sample rate and 14-bit dynamic range enable precise measurement of high-frequency signals and complex modulation schemes.
Satellite Communications
The device's high linearity and sampling speed support direct digitization of multi-GHz satellite links, reducing the need for multiple down-conversion stages.
Electronic Warfare Systems
Its wide instantaneous bandwidth and dual-channel capability allow for simultaneous monitoring of multiple frequency bands, crucial for threat detection and signal intelligence.
- Q: What is the ADC32RF45IRMPT?
- A: It is a dual-channel, 14-bit analog-to-digital converter (ADC) from Texas Instruments.
- Q: What is the resolution and sampling rate?
- A: It offers 14-bit resolution and a maximum sampling rate of 3 GSPS.
- Q: How many channels does it have?
- A: It features 2 input channels.
- Q: What interface does it use?
- A: It uses the JESD204B high-speed serial interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
- Q: What package is available?
- A: It comes in a 72-VFQFN Exposed Pad package.
