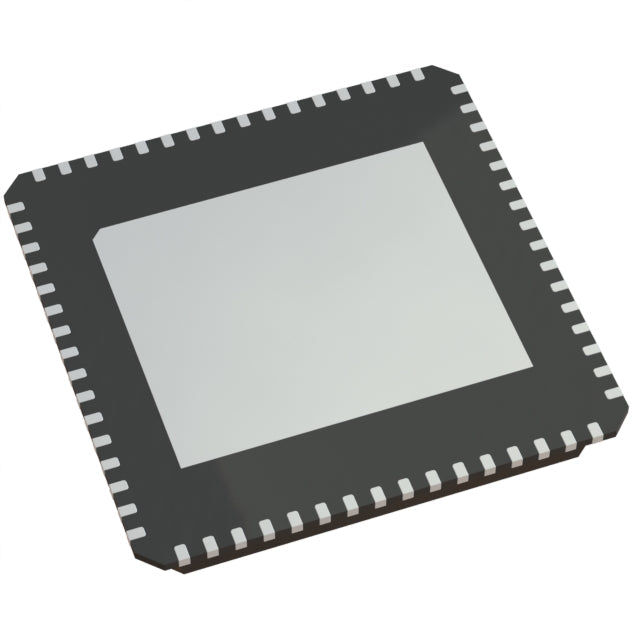

Texas Instruments ADC32RF54IRTD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1,664.50 | $1,664.50 |
| 15+ | $1,611.94 | $24,179.10 |
| 25+ | $1,576.90 | $39,422.50 |
| 50+ | $1,489.29 | $74,464.50 |
| 100+ | $1,314.08 | $131,408.00 |
| N+ | $262.82 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 2.6G |
| Number of Inputs | 4 |
| Input Type | Differential, Single Ended |
| Data Interface | JESD204B, Serial, SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 4 |
| Architecture | - |
| Reference Type | External |
| Voltage - Supply, Analog | 1.175V ~ 1.225V, 1.75V ~ 1.85V |
| Voltage - Supply, Digital | 1.175V ~ 1.225V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Grade | - |
| Qualification | - |
| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-VQFN (9x9) |
The ADC32RF54IRTD is a high-performance 14-bit, 4-channel analog-to-digital converter from Texas Instruments, engineered for demanding RF sampling applications. With a sampling rate of 2.6 GSPS, it delivers exceptional dynamic performance for wideband signal processing. The device features a JESD204B interface for efficient data transfer and an external reference for precise voltage control. Housed in a compact 64-VFQFN package, it is suitable for radar, 5G infrastructure, and high-speed test equipment.
- High-Speed Sampling: 2.6 GSPS enables direct RF sampling, eliminating multiple analog mixing stages.
- Multi-Channel Integration: 4 channels reduce board space and power consumption in multi-channel systems.
- Flexible Interface: JESD204B and SPI allow easy integration with FPGAs and microcontrollers.
- Wide Temperature Range: -40°C to 85°C ensures reliable operation in harsh environments.
High-Speed Data Acquisition
With a 2.6 GSPS sampling rate and 14-bit resolution, the ADC32RF54IRTD is ideal for high-speed data acquisition systems requiring precise digitization of wideband signals.
Radar and Electronic Warfare
The 4-channel configuration and high sampling rate enable simultaneous processing of multiple radar returns, improving target detection and tracking in defense applications.
5G and Wireless Infrastructure
Supports direct RF sampling in 5G base stations, reducing the need for multiple downconversion stages and simplifying receiver architectures.
Medical Imaging
High resolution and speed make it suitable for medical imaging systems like MRI and ultrasound, where accurate signal capture is critical for image quality.
Test and Measurement Equipment
Ideal for oscilloscopes and spectrum analyzers, providing the bandwidth and dynamic range needed to characterize high-frequency signals.
Satellite Communications
Enables digitization of wideband satellite signals for ground stations, supporting high-throughput communication links.
- Q: What is the ADC32RF54IRTD?
- A: It is a 14-bit, 4-channel analog-to-digital converter (ADC) from Texas Instruments.
- Q: What is the sampling rate?
- A: The sampling rate is 2.6 GSPS (giga-samples per second).
- Q: What interfaces does it support?
- A: It supports JESD204B, Serial, and SPI interfaces.
- Q: What is the architecture?
- A: The architecture is ADC (pipeline).
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
- Q: What package is available?
- A: It comes in a 64-VFQFN Exposed Pad package.
