Texas Instruments ADC32RF83IRRHT
Regular price
$4.00
Regular price
$1,197.69
Sale price
$4.00
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.00 | $4.00 |
| 15+ | $1,101.87 | $16,528.05 |
| 25+ | $1,077.92 | $26,948.00 |
| 50+ | $1,018.04 | $50,902.00 |
| 100+ | $898.27 | $89,827.00 |
| N+ | $179.65 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 3G |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | JESD204B |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 2:8 |
| Number of A/D Converters | 8 |
| Architecture | Pipelined |
| Reference Type | External |
| Voltage - Supply, Analog | 1.1V ~ 1.25V, 1.8V ~ 2V |
| Voltage - Supply, Digital | 1.1V ~ 1.2V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

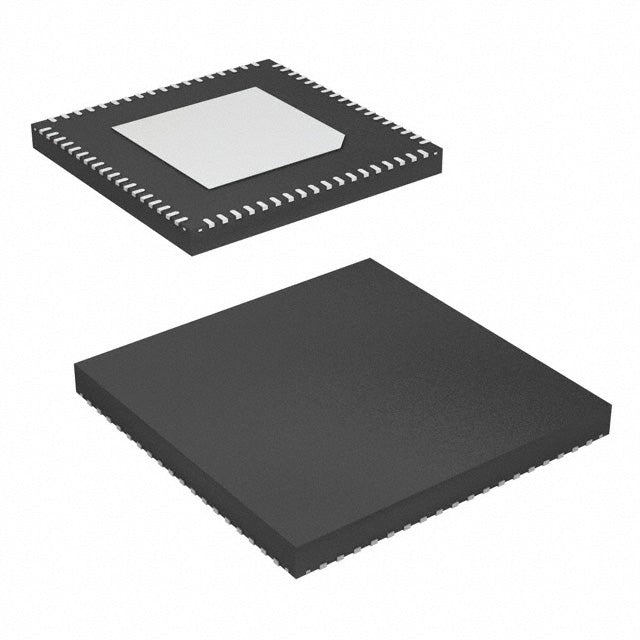

| Package / Case | 72-VFQFN Exposed Pad |
| Supplier Device Package | 72-VQFN (10x10) |
The ADC32RF83IRRHT is a 14-bit dual-channel ADC from Texas Instruments. With 3G SPS sampling and JESD204B output, it delivers high-speed, high-resolution conversion. The S/H architecture with external reference ensures accuracy. Perfect for radar, communications, and scientific applications.
- High Resolution: 14-bit for detailed signal analysis.
- Dual Channel: Simultaneous sampling for I/Q processing.
- Fast Interface: JESD204B for efficient data transfer.
- Industrial Temperature: -40°C to 85°C operation.
- Compact Design: 72-VFQFN package for space-constrained designs.
Phased Array Radar
Dual channels and high sampling rate support beamforming in radar systems.
Satellite Communications
High-speed digitization for wideband satellite links.
Electronic Intelligence
Captures wideband signals for ELINT and SIGINT applications.
Medical Ultrasound
High-resolution imaging with fast data acquisition.
Quantum Computing
Precise control and readout of quantum bits.
High-Energy Physics
Data acquisition for particle detectors.
- Q: What is the ADC32RF83IRRHT?
- A: It is a 14-bit dual-channel ADC from Texas Instruments.
- Q: What is the sampling rate?
- A: It supports 3G SPS sampling.
- Q: What interface does it use?
- A: It uses the JESD204B interface.
- Q: What is the architecture?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: Does it need an external reference?
- A: Yes, it requires an external reference.
- Q: What is the package?
- A: It is in a 72-VFQFN Exposed Pad package.
Base Product Number ：
ADC32RF83
ADC32RF83IRRHT.pdf
