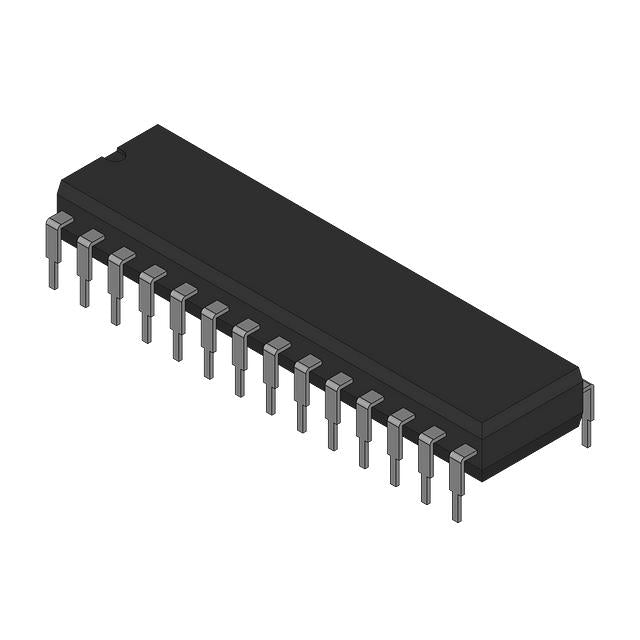

Texas Instruments ADC700JH
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $308.44 | $308.44 |
| 15+ | $70.94 | $1,064.10 |
| 25+ | $69.40 | $1,735.00 |
| 50+ | $65.54 | $3,277.00 |
| 100+ | $57.83 | $5,783.00 |
| N+ | $11.57 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel, Serial |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16V |
| Voltage - Supply, Digital | ±11.4V ~ 16V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
The ADC700JH from Texas Instruments is a high-resolution 16-bit analog-to-digital converter designed for precision measurement applications. It features a single input channel and supports both parallel and serial interfaces, offering flexibility in system design. With an internal reference and a successive approximation architecture, this ADC delivers accurate and stable conversions. Its 28-pin CDIP package is suitable for through-hole mounting in industrial and laboratory equipment. Typical applications include sensor digitization, data acquisition, and medical instrumentation where high accuracy is paramount.
- High 16-bit Resolution: Provides exceptional detail in signal conversion, minimizing quantization error for precise measurements.
- Flexible Interface Options: Supports both parallel and serial communication, simplifying integration with a wide range of host controllers.
- Internal Reference: Reduces external component count and ensures stable voltage reference for consistent ADC performance.
- Proven Architecture: The successive approximation design offers a good balance of speed and accuracy for general-purpose data acquisition.
High-Precision Industrial Sensor Digitization
The 16-bit resolution of the ADC700JH ensures accurate digitization of industrial sensors such as strain gauges and pressure transducers, where small voltage variations must be captured without error.
Data Acquisition Systems
With its parallel and serial interface options, the ADC700JH integrates easily into multi-channel data acquisition systems, providing a reliable conversion path for analog signals in laboratory and test equipment.
Medical Instrumentation
In medical devices like patient monitors, the high resolution and internal reference of the ADC700JH help maintain signal integrity for vital sign monitoring, ensuring consistent and repeatable measurements.
Calibration and Metrology Equipment
The ADC700JH's 16-bit accuracy and internal reference make it suitable for calibration instruments that require a stable and precise analog-to-digital conversion reference point.
Avionics and Aerospace Test Systems
Operating within 0°C to 70°C, the ADC700JH can be used in ground-based avionics test benches where high-resolution conversion of sensor outputs is required for system validation.
- Q: What type of ADC is the ADC700JH?
- A: The ADC700JH is a 16-bit analog-to-digital converter (ADC) with a successive approximation architecture.
- Q: What is the resolution of the ADC700JH?
- A: It offers 16-bit resolution, providing high precision for demanding measurement applications.
- Q: How many channels does the ADC700JH have?
- A: It features a single input channel, ideal for dedicated signal conversion.
- Q: What interfaces are supported by the ADC700JH?
- A: It supports both Parallel and Serial interfaces for flexible connectivity with microcontrollers and DSPs.
- Q: What is the operating temperature range?
- A: The ADC700JH operates over a commercial temperature range of 0°C to 70°C.
- Q: What package is the ADC700JH available in?
- A: It comes in a 28-pin CDIP (0.600", 15.24mm) ceramic dual-inline package.
