Analog Devices Inc. ADE1202ACCZ-RL
Regular price
Dhs. 63.46
Regular price
Dhs. 66.79
Sale price
Dhs. 63.46
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 63.46 | Dhs. 63.46 |
| 15+ | Dhs. 61.45 | Dhs. 921.75 |
| 25+ | Dhs. 60.11 | Dhs. 1,502.75 |
| 50+ | Dhs. 56.77 | Dhs. 2,838.50 |
| 100+ | Dhs. 50.09 | Dhs. 5,009.00 |
| N+ | Dhs. 10.02 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

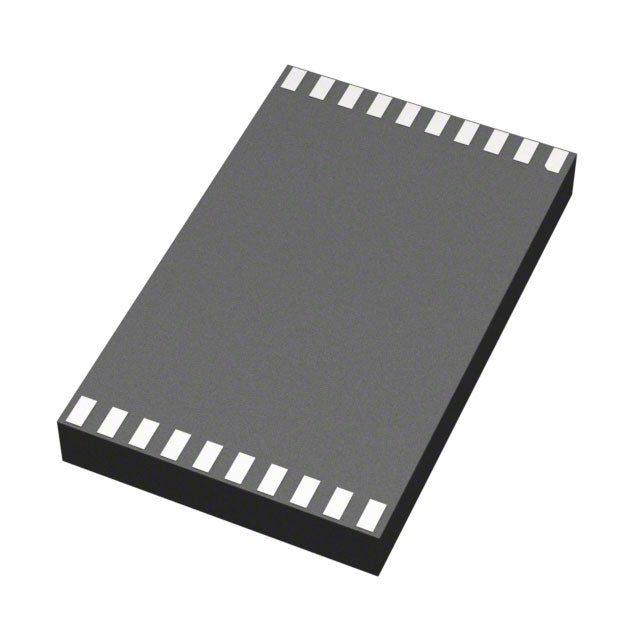

ADE1202ACCZ-RL - 2-Channel Isolated Analog-to-Digital Converter Module
The ADE1202ACCZ-RL from Analog Devices Inc. is a high-performance isolated ADC module designed for precision data acquisition in harsh industrial environments. This 2-channel, 8-bit resolution converter delivers reliable 100kSPS sampling with galvanic isolation, making it ideal for motor control, power monitoring, and industrial automation applications.
Key Features & Benefits
- Dual-Channel Design: Simultaneous sampling on 2 independent channels for multi-point monitoring
- Galvanic Isolation: Isolated module architecture protects sensitive circuitry from high-voltage transients
- Fast Sampling: 100k samples per second enables real-time signal processing
- SPI Interface: Industry-standard serial interface simplifies integration with microcontrollers
- Wide Temperature Range: -40°C to 125°C operation for automotive and industrial applications
- Compact Surface Mount: 20-LGA (5x8mm) package saves board space
- RoHS Compliant: Meets environmental standards for global distribution
Applications
- Industrial process control and monitoring
- Motor control and drive systems
- Power quality analysis and energy metering
- Isolated sensor interfaces
- Medical instrumentation
- Automotive battery management systems
Design Resources
Full datasheet, reference designs, and technical support available from Analog Devices. Our team provides design-in assistance to help you integrate this component into your next project.
Availability: In stock with same-day shipping. Available in Cut Tape (CT) and Tape & Reel (TR) packaging options for prototype and production volumes.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Isolated Module |
| Number of Channels | 2 |
| Resolution (Bits) | 8 b |
| Sampling Rate (Per Second) | 100k |
| Data Interface | SPI |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.97V ~ 3.63V, 2.97V ~ 3.63V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-TFLGA |
| Supplier Device Package | 20-LGA (5x8) |
| ROHS |  |
ADE1202ACCZ-RL.pdf
×
