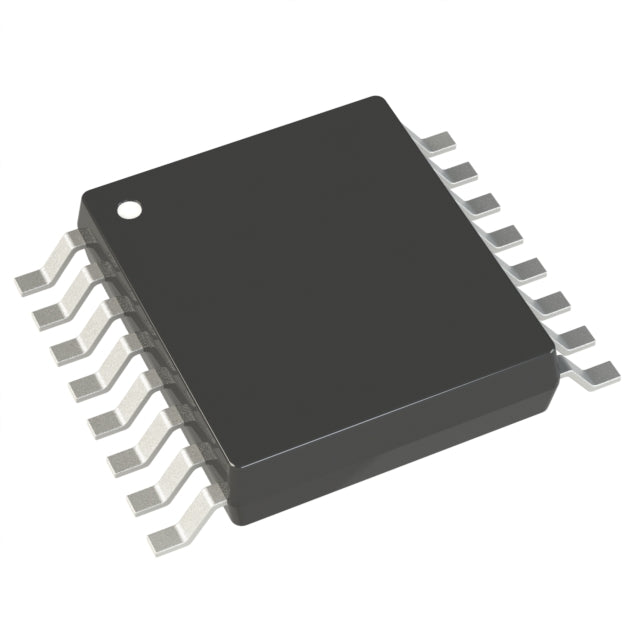

Analog Devices Inc. ADF4002BRUZ-RL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.66 | $6.66 |
| 15+ | $6.45 | $96.75 |
| 25+ | $6.31 | $157.75 |
| 50+ | $5.96 | $298.00 |
| 100+ | $5.26 | $526.00 |
| N+ | $1.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Clock/Frequency Synthesizer (RF), Phase Detector |
| PLL | Yes with Bypass |
| Input | CMOS, TTL |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 2:1 |
| Differential - Input:Output | Yes/No |
| Frequency - Max | 400MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.7V ~ 3.3V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| ROHS |  |
The ADF4002BRUZ-RL from Analog Devices is a high-frequency Clock/Frequency Synthesizer (RF) and Phase Detector. It accepts CMOS or TTL inputs and provides clock outputs up to 400MHz. With a single circuit and PLL bypass option, it is ideal for RF frequency synthesis in communications and test equipment. The 16-TSSOP package and -40°C to 85°C range support demanding applications.
- High-Frequency Operation: Supports up to 400MHz, suitable for RF and microwave applications.
- Flexible Logic Interface: Accepts both CMOS and TTL inputs, simplifying integration.
- PLL Bypass Mode: Allows use as a standalone phase detector when synthesis is not needed.
- Industrial Temperature Range: -40°C to 85°C ensures reliability in harsh environments.
RF Local Oscillator Generation
Generate precise local oscillator frequencies for RF transceivers in base stations, ensuring accurate channel selection and modulation.
Satellite Communication Systems
Provide stable reference clocks for satellite downconverters and modems, maintaining signal integrity over long distances.
Test Equipment Frequency Synthesis
Create programmable frequency sources for signal generators and spectrum analyzers, enabling accurate measurements.
Wireless Infrastructure Timing
Synthesize clocks for baseband processors and RF front-ends in 4G/5G infrastructure, ensuring synchronized operation.
Radar Systems
Generate chirp signals and local oscillators for radar transmitters, improving target detection and ranging accuracy.
- Q: What type of device is the ADF4002BRUZ-RL?
- A: It is a Clock/Frequency Synthesizer (RF) and Phase Detector from Analog Devices, used in PLL frequency synthesis applications.
- Q: Does the ADF4002BRUZ-RL support PLL bypass?
- A: Yes, it has a PLL with bypass capability, allowing direct phase detection without synthesis.
- Q: What are the input and output types?
- A: It accepts CMOS or TTL inputs and provides Clock outputs, making it compatible with standard digital logic.
- Q: How many circuits and what is the maximum frequency?
- A: It has 1 circuit and supports a maximum frequency of 400MHz.
- Q: What is the package and temperature range?
- A: It comes in a 16-TSSOP package (0.173", 4.40mm Width) and operates from -40°C to 85°C.
