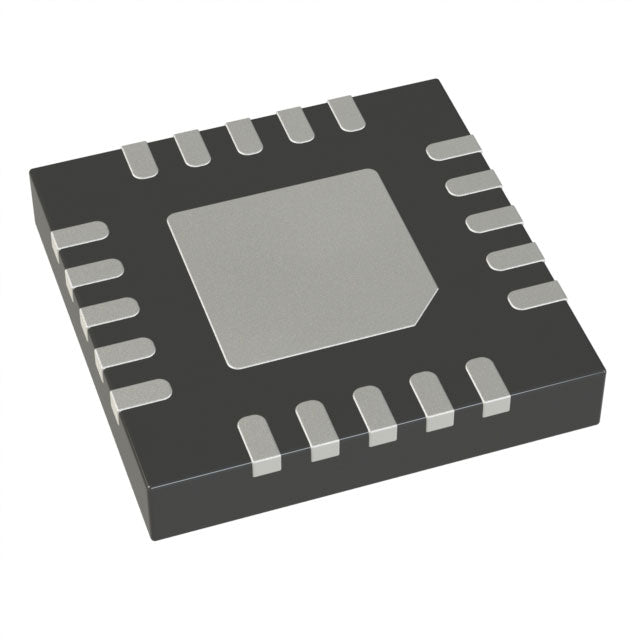

Analog Devices Inc. ADF4110BCPZ-RL7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.23 | $8.23 |
| 15+ | $7.97 | $119.55 |
| 25+ | $7.79 | $194.75 |
| 50+ | $7.36 | $368.00 |
| 100+ | $6.50 | $650.00 |
| N+ | $1.30 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Clock/Frequency Synthesizer (RF) |
| PLL | Yes |
| Input | CMOS, TTL |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 2:1 |
| Differential - Input:Output | Yes/No |
| Frequency - Max | 550MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-LFCSP (4x4) |
| ROHS |  |
The ADF4110BCPZ-RL7 is a high-performance Clock/Frequency Synthesizer (RF) from Analog Devices, featuring an integrated PLL for precise frequency generation up to 550MHz. With a single circuit and CMOS/TTL input compatibility, it delivers a clean clock output for RF and wireless applications. Housed in a compact 20-WFQFN package, it operates reliably from -40°C to 85°C, making it ideal for base stations, test equipment, and industrial communication systems.
- Integrated PLL simplifies RF design by reducing external components, lowering board space and BOM cost.
- Wide 550MHz frequency range supports diverse RF applications from VHF to UHF bands.
- CMOS/TTL input compatibility ensures easy interfacing with standard logic families.
- Compact 20-WFQFN package enables dense PCB layouts for space-constrained designs.
- Industrial temperature range (-40°C to 85°C) guarantees reliable operation in harsh environments.
RF Local Oscillator for Wireless Base Stations
The ADF4110BCPZ-RL7, with its 550MHz PLL synthesizer, provides a stable local oscillator signal for mixers in wireless infrastructure, ensuring accurate frequency conversion in transceiver paths.
Satellite Communication Downconverters
In satellite receivers, this synthesizer generates precise tuning signals for downconverters, maintaining signal integrity across the 550MHz range for reliable data reception.
Test and Measurement Equipment
For signal generators and spectrum analyzers, the ADF4110BCPZ-RL7 offers a programmable frequency source with CMOS/TTL interface, enabling flexible and accurate test signal generation.
Private Mobile Radio (PMR) Systems
This PLL synthesizer supports frequency hopping and channel selection in PMR handheld and mobile radios, delivering consistent performance over the -40°C to 85°C temperature range.
Industrial Frequency Hopping Spread Spectrum
In industrial wireless sensors, the device provides agile frequency synthesis for spread-spectrum communication, reducing interference and improving link robustness in harsh environments.
- Q: What type of device is the ADF4110BCPZ-RL7?
- A: It is a Clock/Frequency Synthesizer (RF) from Analog Devices, designed for RF frequency synthesis applications.
- Q: Does the ADF4110BCPZ-RL7 include a PLL?
- A: Yes, it includes a Phase-Locked Loop (PLL) for frequency synthesis.
- Q: What are the input and output types?
- A: Inputs accept CMOS and TTL signals; the output is a Clock signal.
- Q: How many circuits does it have and what is the maximum frequency?
- A: It has 1 circuit and supports a maximum frequency of 550MHz.
- Q: What is the supply voltage and operating temperature range?
- A: The operating temperature range is -40°C to 85°C. Supply voltage details are not specified in the provided data.
- Q: What package is the ADF4110BCPZ-RL7 available in?
- A: It comes in a 20-WFQFN Exposed Pad, CSP package.
