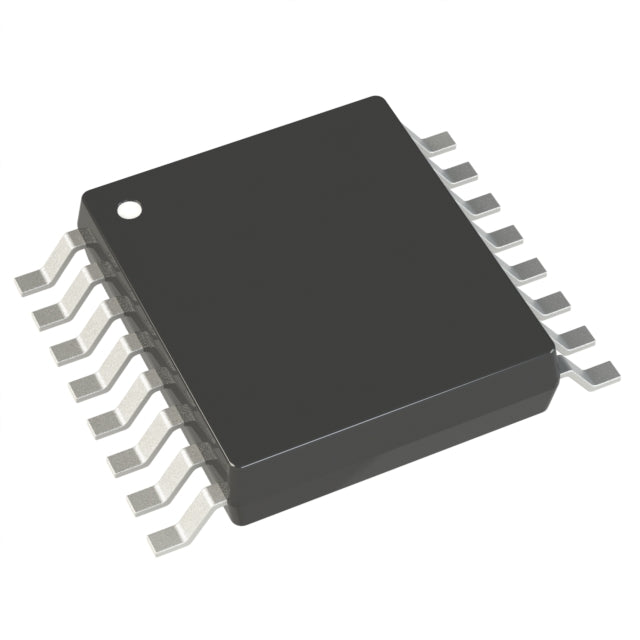

Analog Devices Inc. ADF4153ABRUZ-RL7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.20 | $14.20 |
| 15+ | $3.27 | $49.05 |
| 25+ | $3.20 | $80.00 |
| 50+ | $3.02 | $151.00 |
| 100+ | $2.66 | $266.00 |
| N+ | $0.53 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Type | Fractional N Synthesizer (RF) |
| PLL | Yes |
| Input | CMOS, TTL |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 2:1 |
| Differential - Input:Output | Yes/No |
| Frequency - Max | 4GHz |
| Divider/Multiplier | No/Yes |
| Voltage - Supply | 2.7V ~ 3.3V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
The Analog Devices ADF4153ABRUZ-RL7 is a Fractional N Synthesizer (RF) designed for high-frequency applications up to 4GHz. It features an integrated PLL, accepts CMOS/TTL inputs, and provides a clock output. With one circuit, it delivers precise frequency synthesis for wireless, satellite, and test equipment. The 16-TSSOP package and -40°C to 85°C range ensure reliable performance in various environments.
- High Frequency: Supports up to 4GHz, ideal for RF and microwave applications.
- Fractional-N PLL: Provides fine frequency resolution for precise tuning.
- Wide Temperature Range: Operates from -40°C to 85°C for industrial and military use.
- Simple Interface: CMOS/TTL inputs allow easy control from microcontrollers.
RF Frequency Synthesis
Generate precise RF frequencies up to 4GHz for wireless transceivers, base stations, and radar systems. The fractional-N PLL allows fine frequency resolution.
Wireless Infrastructure
Use in cellular base stations and repeaters to generate local oscillator signals. The high frequency and low phase noise ensure reliable communication.
Satellite Communications
Provide frequency synthesis for satellite uplink/downlink equipment. The wide frequency range supports various bands.
Test Equipment
Generate stable RF signals for signal generators and spectrum analyzers. The CMOS/TTL interface simplifies control.
Military and Aerospace
Use in radar and electronic warfare systems. The wide temperature range and high frequency make it suitable for demanding environments.
- Q: What type of device is the ADF4153ABRUZ-RL7?
- A: It is a Fractional N Synthesizer (RF) from Analog Devices Inc.
- Q: Does it support PLL?
- A: Yes, it includes a PLL.
- Q: What input and output types are supported?
- A: Inputs: CMOS, TTL. Output: Clock.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 4GHz.
- Q: What is the package and temperature range?
- A: Package is 16-TSSOP, operating temperature -40°C to 85°C.
