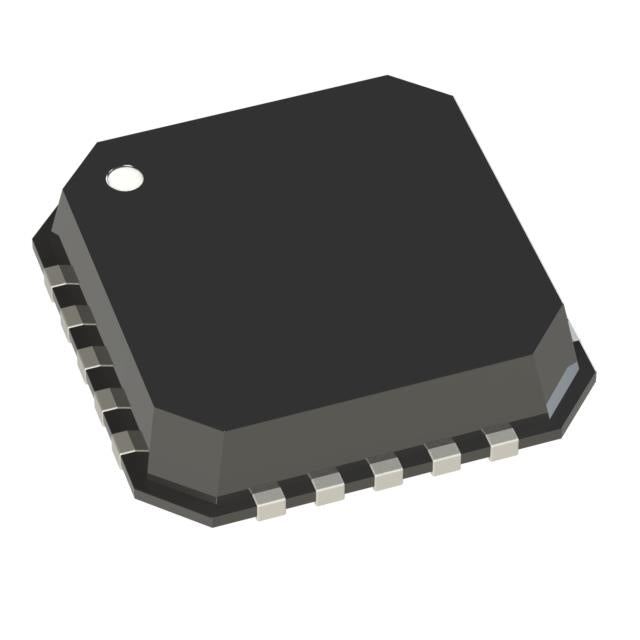

Analog Devices Inc. ADF4153YCPZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $26.88 | $26.88 |
| 15+ | $6.18 | $92.70 |
| 25+ | $6.05 | $151.25 |
| 50+ | $5.71 | $285.50 |
| 100+ | $5.04 | $504.00 |
| N+ | $1.01 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Type | Fractional N Synthesizer (RF) |
| PLL | Yes |
| Input | CMOS, TTL |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 2:1 |
| Differential - Input:Output | Yes/No |
| Frequency - Max | 4GHz |
| Divider/Multiplier | No/Yes |
| Voltage - Supply | 2.7V ~ 3.3V |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-LFCSP-VQ (4x3.75) |
| ROHS |  |
The Analog Devices ADF4153YCPZ is a Fractional N Synthesizer (RF) with an integrated PLL. It accepts CMOS or TTL inputs and provides clock outputs up to 4GHz. With one circuit, it is designed for high-frequency RF applications such as wireless infrastructure and test equipment. The 20-VFQFN package and extended temperature range (-40°C to 125°C) ensure robust performance.
- High-Frequency Operation: Supports up to 4GHz, ideal for RF and microwave applications.
- Fractional-N Synthesis: Enables fine frequency resolution with low phase noise.
- Wide Temperature Range: Operates from -40°C to 125°C for demanding environments.
- Compact Package: 20-VFQFN CSP saves space in RF modules.
RF Local Oscillator Generation
Generates high-frequency local oscillator signals up to 4GHz for wireless transceivers and base stations.
Satellite Communications
Provides precise frequency synthesis for Ku-band and Ka-band satellite downconverters.
Test and Measurement Equipment
Used in signal generators and spectrum analyzers requiring wide frequency range and fine resolution.
Radar Systems
Delivers stable, low-phase-noise clocks for pulsed and continuous-wave radar applications.
Microwave Point-to-Point Links
Supports frequency hopping and channel selection in microwave backhaul systems.
- Q: What type of device is the ADF4153YCPZ?
- A: It is a Fractional N Synthesizer (RF) from Analog Devices Inc.
- Q: Does it have a PLL?
- A: Yes, it includes a Phase-Locked Loop (PLL).
- Q: What are the input and output types?
- A: Inputs are CMOS and TTL. Output is Clock.
- Q: How many circuits and what is the maximum frequency?
- A: It has 1 circuit and supports frequencies up to 4GHz.
- Q: What is the package and temperature range?
- A: Package is 20-VFQFN Exposed Pad, CSP. Temperature range is -40°C to 125°C.
