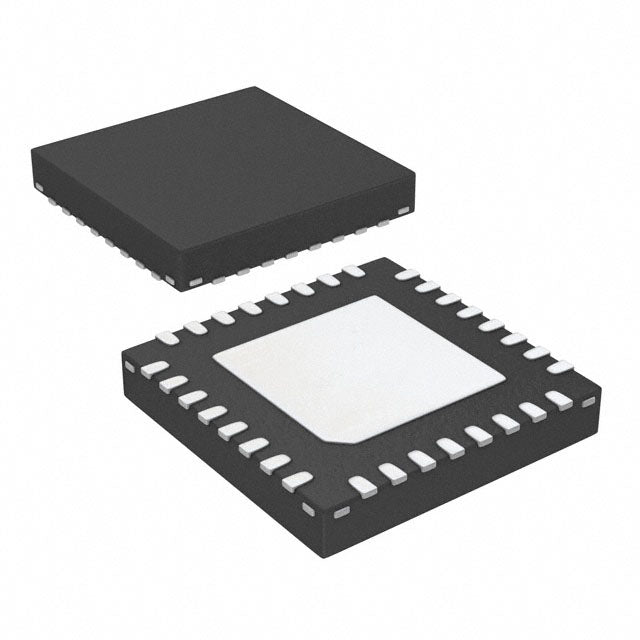

Analog Devices Inc. ADF4159WCCPZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.81 | $19.81 |
| 15+ | $19.18 | $287.70 |
| 25+ | $18.77 | $469.25 |
| 50+ | $17.72 | $886.00 |
| 100+ | $15.64 | $1,564.00 |
| N+ | $3.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Type | Frequency Synthesizer |
| PLL | Yes |
| Input | CMOS, TTL |
| Output | CMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 2:1 |
| Differential - Input:Output | Yes/No |
| Frequency - Max | 13GHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 1.62V ~ 3.45V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP-WQ (4x4) |
| ROHS |  |
The ADF4159WCCPZ is a high-frequency synthesizer from Analog Devices, featuring an integrated PLL capable of generating frequencies up to 13 GHz. With a single circuit, it accepts CMOS/TTL inputs and provides a CMOS output, making it ideal for microwave and RF applications. Its wide operating temperature range and compact 24-WFQFN package make it suitable for demanding automotive and industrial environments. This device is perfect for radar, satellite, and 5G test systems requiring precise frequency control.
- Extreme Frequency Range: Supports up to 13 GHz, enabling next-generation microwave and mmWave designs.
- Fast Settling Time: Rapid frequency hopping for agile radar and communication systems.
- Wide Temperature Range: Rated for -40°C to 125°C, suitable for automotive and harsh industrial environments.
- Simple Digital Interface: CMOS/TTL inputs simplify integration with microcontrollers and DSPs.
Microwave Point-to-Point Radios
Generate stable local oscillator signals up to 13 GHz for microwave backhaul links, ensuring reliable high-bandwidth data transmission.
Radar Systems
Provide precise frequency hopping and chirp generation for FMCW radar in automotive and defense applications, leveraging the high-frequency PLL.
Satellite Communication
Synthesize Ku-band and Ka-band frequencies for satellite transceivers, enabling accurate uplink and downlink signal processing.
Test Equipment for 5G
Create clean, tunable signals for testing 5G mmWave components and systems, supporting frequencies up to 13 GHz.
Electronic Warfare Systems
Deliver agile frequency synthesis for jamming and signal intelligence, with fast settling times for dynamic environments.
Industrial Microwave Heating
Control magnetron or solid-state power amplifier frequencies for industrial heating processes, ensuring consistent energy delivery.
- Q: What type of device is the ADF4159WCCPZ?
- A: It is a Frequency Synthesizer with an integrated Phase-Locked Loop (PLL), designed for high-frequency generation.
- Q: Does it support PLL?
- A: Yes, it features a fully integrated PLL for precise frequency synthesis up to 13 GHz.
- Q: What are the input and output types?
- A: It accepts CMOS and TTL inputs and provides a CMOS output, simplifying digital control and feedback.
- Q: How many circuits does it have?
- A: It contains 1 circuit, providing a single synthesis channel.
- Q: What is the maximum frequency?
- A: The maximum output frequency is 13 GHz, making it suitable for microwave and radar applications.
- Q: What is the supply voltage and package?
- A: It operates at 3.3V and comes in a 24-WFQFN Exposed Pad, CSP package, rated for -40°C to 125°C.
ADF4159WCCPZ.pdf
