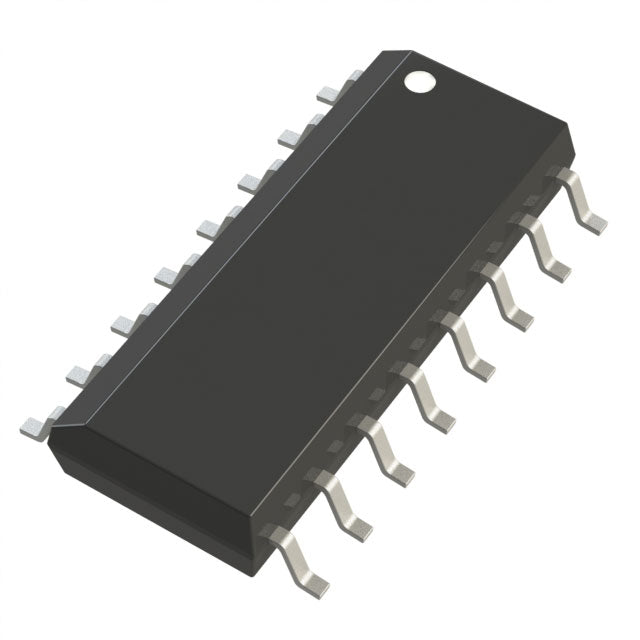

Analog Devices Inc. ADG1308BRZ
Regular price
$9.04
Regular price
$2.26
Sale price
$9.04
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.04 | $9.04 |
| 15+ | $2.08 | $31.20 |
| 25+ | $2.03 | $50.75 |
| 50+ | $1.92 | $96.00 |
| 100+ | $1.70 | $170.00 |
| N+ | $0.34 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 210Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 100ns, 100ns |
| -3db Bandwidth | 500MHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 15pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
ADG1308BRZ.pdf
×
