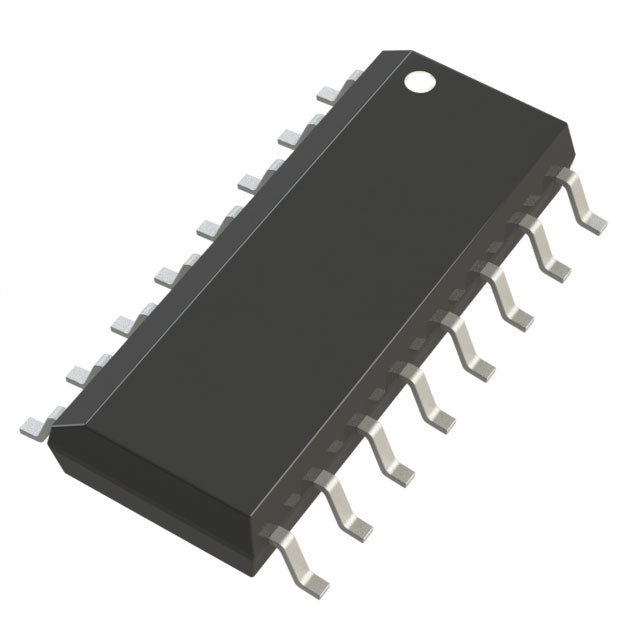

Analog Devices Inc. ADG1313YRZ
Regular price
$4.79
Regular price
$5.04
Sale price
$4.79
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.79 | $4.79 |
| 15+ | $4.64 | $69.60 |
| 25+ | $4.54 | $113.50 |
| 50+ | $4.28 | $214.00 |
| 100+ | $3.78 | $378.00 |
| N+ | $0.76 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 200Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 125ns, 50ns |
| -3db Bandwidth | 600MHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
ADG1313YRZ.pdf
×
