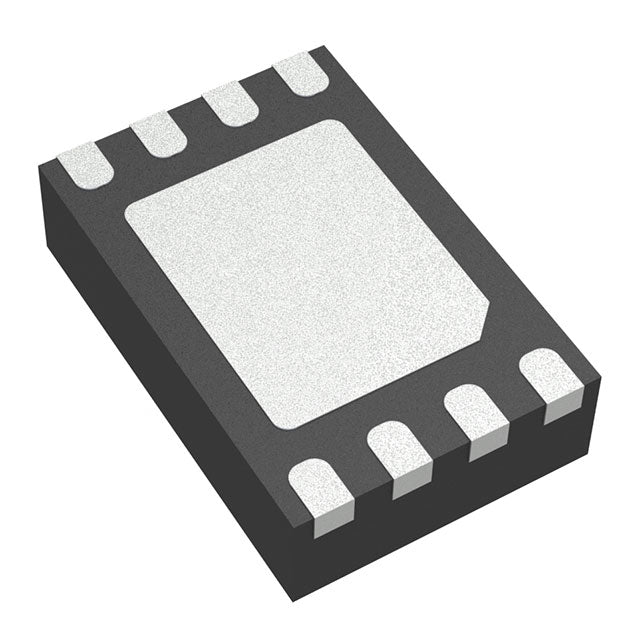

Analog Devices Inc. ADG1419BCPZ-REEL7
Regular price
Dhs. 22.40
Regular price
Dhs. 23.56
Sale price
Dhs. 22.40
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 22.40 | Dhs. 22.40 |
| 15+ | Dhs. 21.68 | Dhs. 325.20 |
| 25+ | Dhs. 21.20 | Dhs. 530.00 |
| 50+ | Dhs. 20.03 | Dhs. 1,001.50 |
| 100+ | Dhs. 17.67 | Dhs. 1,767.00 |
| N+ | Dhs. 3.53 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 2.4Ohm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 110ns, 140ns |
| -3db Bandwidth | 135MHz |
| Charge Injection | -16pC |
| Channel Capacitance (CS(off), CD(off)) | 19pF, 44pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -64dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-WFDFN Exposed Pad, CSP |
| ROHS |  |
ADG1419BCPZ-REEL7.pdf
×
