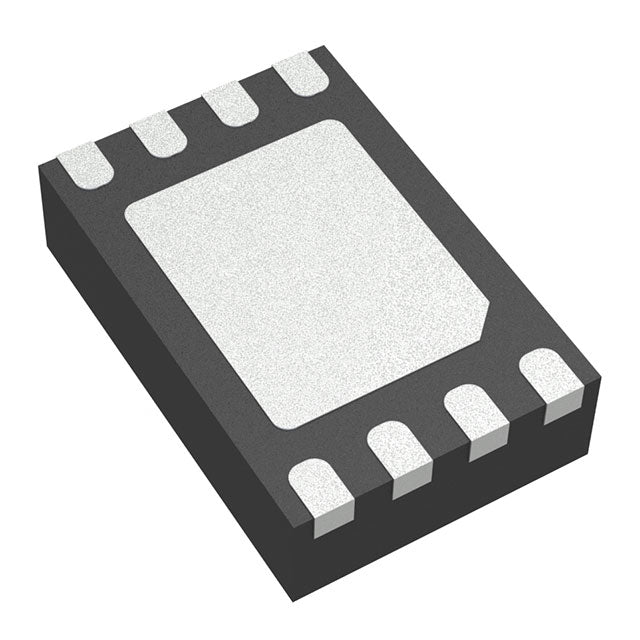

Analog Devices Inc. ADG1517BCPZ-REEL7
Regular price
$4.79
Regular price
$5.04
Sale price
$4.79
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.79 | $4.79 |
| 15+ | $4.64 | $69.60 |
| 25+ | $4.54 | $113.50 |
| 50+ | $4.28 | $214.00 |
| 100+ | $3.78 | $378.00 |
| N+ | $0.76 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.85Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 175ns, 155ns |
| -3db Bandwidth | 65MHz |
| Charge Injection | 70pC |
| Channel Capacitance (CS(off), CD(off)) | 68pF, 68pF |
| Current - Leakage (IS(off)) (Max) | 10nA (Typ) |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-WFDFN Exposed Pad, CSP |
ADG1517BCPZ-REEL7.pdf
×
