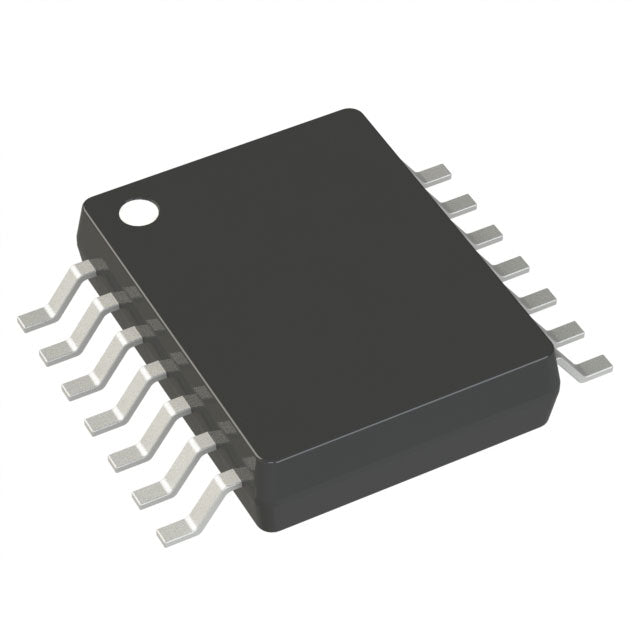

Analog Devices Inc. ADG1604BRUZ
Regular price
$7.12
Regular price
$7.49
Sale price
$7.12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.12 | $7.12 |
| 15+ | $6.89 | $103.35 |
| 25+ | $6.74 | $168.50 |
| 50+ | $6.37 | $318.50 |
| 100+ | $5.62 | $562.00 |
| N+ | $1.12 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.1Ohm |
| Channel-to-Channel Matching (ΔRon) | 30mOhm |
| Voltage - Supply, Single (V+) | 3.3V ~ 16V |
| Voltage - Supply, Dual (V±) | ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 95ns, 173ns |
| -3db Bandwidth | 19MHz |
| Charge Injection | 125pC |
| Channel Capacitance (CS(off), CD(off)) | 60pF, 270pF |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
ADG1604BRUZ.pdf
×
