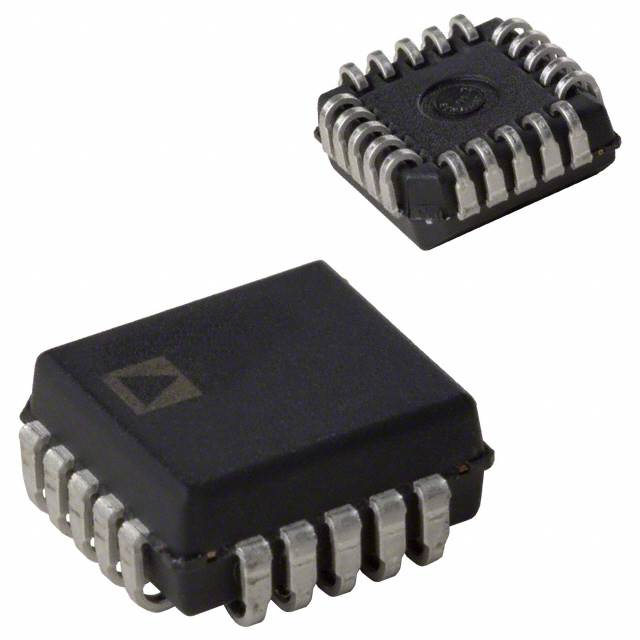

Analog Devices Inc. ADG201AKP
Regular price
$11.52
Regular price
$2.88
Sale price
$11.52
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.52 | $11.52 |
| 15+ | $2.65 | $39.75 |
| 25+ | $2.59 | $64.75 |
| 50+ | $2.45 | $122.50 |
| 100+ | $2.16 | $216.00 |
| N+ | $0.43 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 90Ohm |
| Channel-to-Channel Matching (ΔRon) | 4.5Ohm |
| Voltage - Supply, Single (V+) | 10V ~ 15V |
| Voltage - Supply, Dual (V±) | ±10V ~ 15V |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns |
| -3db Bandwidth | - |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -80dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-LCC (J-Lead) |
ADG201AKP.pdf
×
