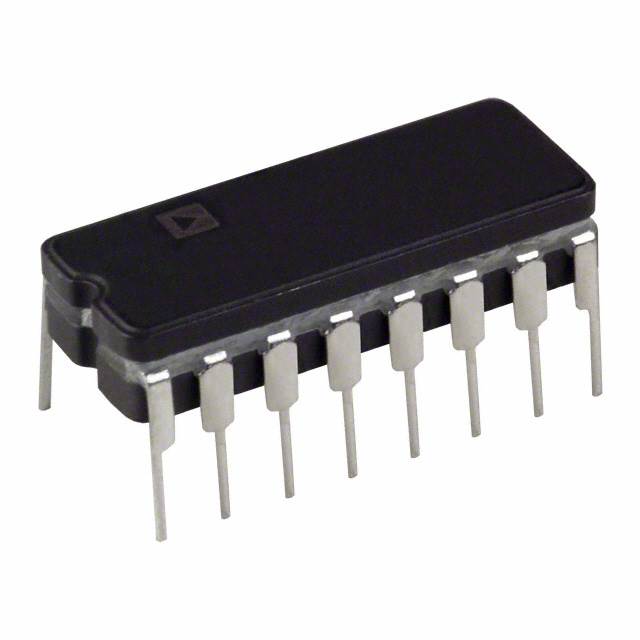

Analog Devices Inc. ADG202ATQ
Regular price
$51.92
Regular price
$12.98
Sale price
$51.92
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $51.92 | $51.92 |
| 15+ | $11.94 | $179.10 |
| 25+ | $11.68 | $292.00 |
| 50+ | $11.03 | $551.50 |
| 100+ | $9.74 | $974.00 |
| N+ | $1.95 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 90Ohm |
| Channel-to-Channel Matching (ΔRon) | 4.5Ohm |
| Voltage - Supply, Single (V+) | 10V ~ 15V |
| Voltage - Supply, Dual (V±) | ±10V ~ 15V |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns |
| -3db Bandwidth | - |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -80dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP (0.300", 7.62mm) |
ADG202ATQ.pdf
×
