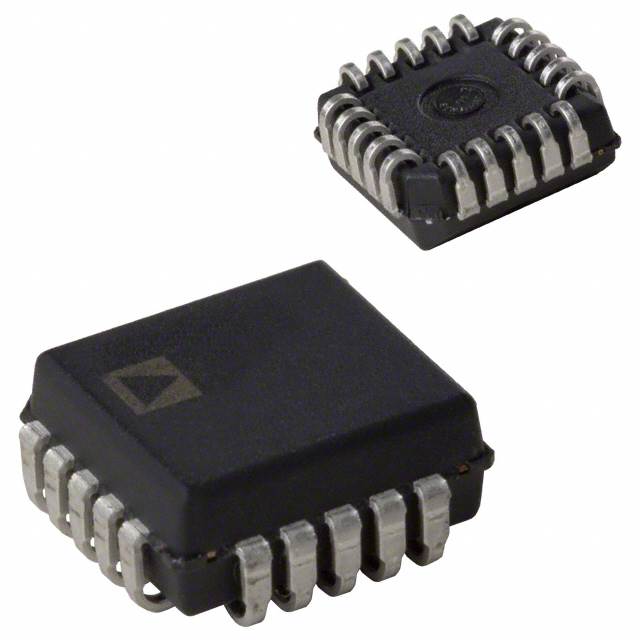

Analog Devices Inc. ADG211AKP
Regular price
$13.60
Regular price
$3.40
Sale price
$13.60
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.60 | $13.60 |
| 15+ | $3.13 | $46.95 |
| 25+ | $3.06 | $76.50 |
| 50+ | $2.89 | $144.50 |
| 100+ | $2.55 | $255.00 |
| N+ | $0.51 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 115Ohm |
| Channel-to-Channel Matching (ΔRon) | 5.75Ohm |
| Voltage - Supply, Single (V+) | 15V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 600ns, 450ns |
| -3db Bandwidth | - |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | -80dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-LCC (J-Lead) |
ADG211AKP.pdf
×
