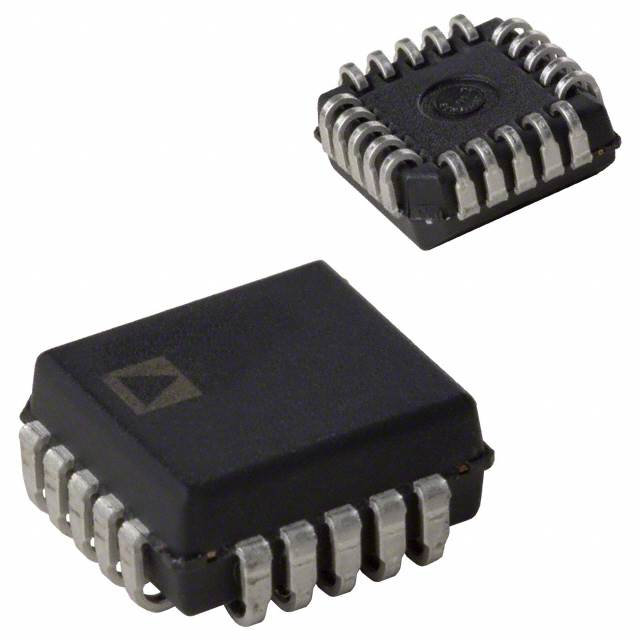

Analog Devices Inc. ADG211AKPZ
Regular price
$19.08
Regular price
$4.77
Sale price
$19.08
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.08 | $19.08 |
| 15+ | $4.39 | $65.85 |
| 25+ | $4.29 | $107.25 |
| 50+ | $4.05 | $202.50 |
| 100+ | $3.58 | $358.00 |
| N+ | $0.72 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 115Ohm |
| Channel-to-Channel Matching (ΔRon) | 5.75Ohm |
| Voltage - Supply, Single (V+) | 15V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 600ns, 450ns |
| -3db Bandwidth | - |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | -80dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-LCC (J-Lead) |
| ROHS |  |
ADG211AKPZ.pdf
×
