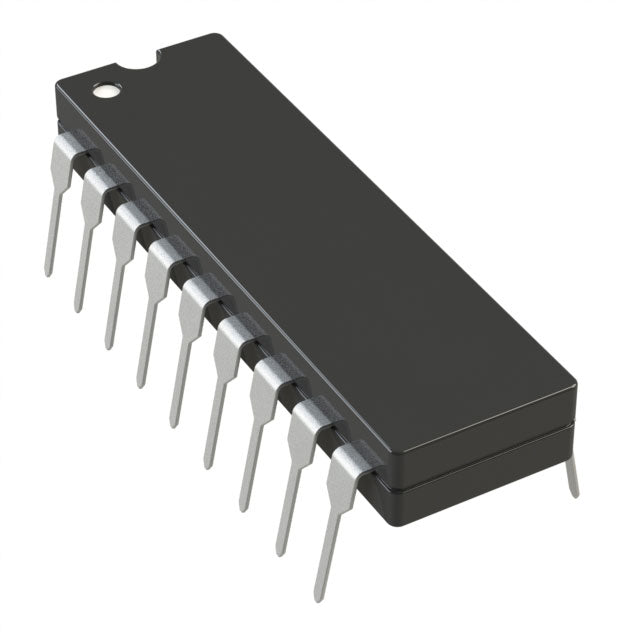

Analog Devices Inc. ADG333ABNZ
Regular price
$8.34
Regular price
$8.78
Sale price
$8.34
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.34 | $8.34 |
| 15+ | $8.08 | $121.20 |
| 25+ | $7.90 | $197.50 |
| 50+ | $7.46 | $373.00 |
| 100+ | $6.59 | $659.00 |
| N+ | $1.32 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 45Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 30V |
| Voltage - Supply, Dual (V±) | ±3V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 90ns, 80ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-DIP (0.300", 7.62mm) |
| ROHS |  |
ADG333ABNZ.pdf
×
